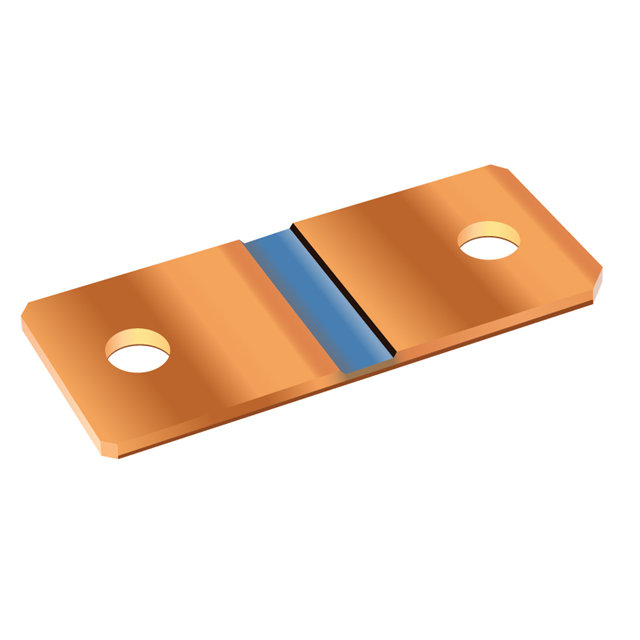

CSM2F-8536-L025J02 Real Image
Same model may have multiple batches, images only for reference.

CSM2F-8536-L025J02

Part No CSM2F-8536-L025J02
Manufacturer Bourns Inc.
Catalog Specialized Resistors
Description SHUNTMETRIC 8536 L025 5% 36W TC5  /  25 µOhms ±5% 50W Shunt, Battery Specialized Resistor ±150ppm/°C Surface Mount
Datasheet
CSM2F-8536-L025J02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Specialized Resistors
Mfr Bourns Inc.
Series CSM2F-8536
Package Bag
Type Shunt, Battery
Applications Automotive AEC-Q200
Resistance 25 µOhms
Tolerance ±5%
Power (Watts) 50W
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -40°C ~ 170°C
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 118-CSM2F-8536-L025J02
Standard Package 100
Win Source Part Number 1068268-CSM2F-8536-L025J02
Ultra Librarian 3D Model Ultra Librarian CSM2F-8536-L025J02 CAD Model

Description

The Bourns Inc. CSM2F-8536-L025J02 electronic component is a specialized resistor designed for use in automotive AEC-Q200 applications.

  • Type: Shunt, Battery
  • Resistance: 25 μOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±150ppm/°C
  • Power Rating: 50W
  • Application: Various electronic applications
