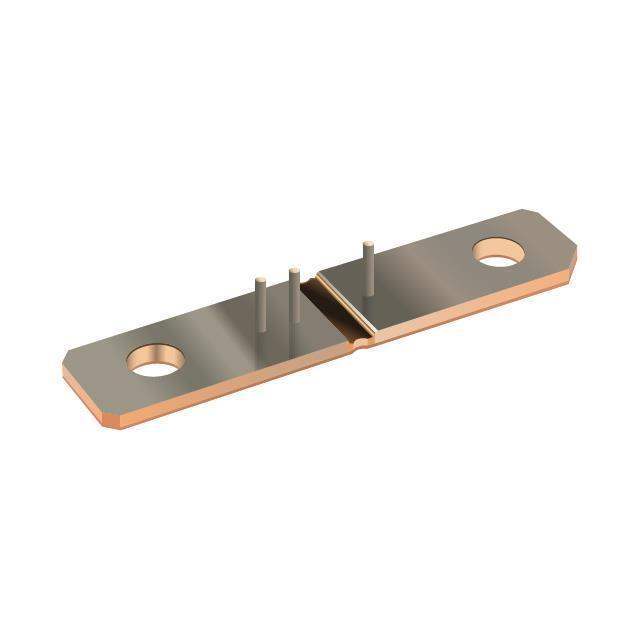

CSM2F-8518-L100J32 Bourns Inc.
Same model may have multiple batches, images only for reference.

CSM2F-8518-L100J32

Part No CSM2F-8518-L100J32
Manufacturer Bourns Inc.
Catalog Specialized Resistors
Description RES SHUNT 8518 100 UOHM 50W 3P
Datasheet
CSM2F-8518-L100J32 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308223-CSM2F-8518-L100J32
Manufacturer Bourns Inc.
Category Resistors>Specialized Resistors
Packaging  Tray
Part Status Active
Type Shunt, Battery
Applications Automotive AEC-Q200
Resistance (Ohms) 100 µOhms
Tolerance ±5%
Power (Watts) 36W
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian CSM2F-8518-L100J32 CAD Model

Description

FEATURES

  • Up to 36 W permanent power
  • High pulse power rating
  • Maximum fastening torque: 25 Nm
  • Customized versions available
  • RoHS compliant* / lead free
  • AEC-Q200 compliant
