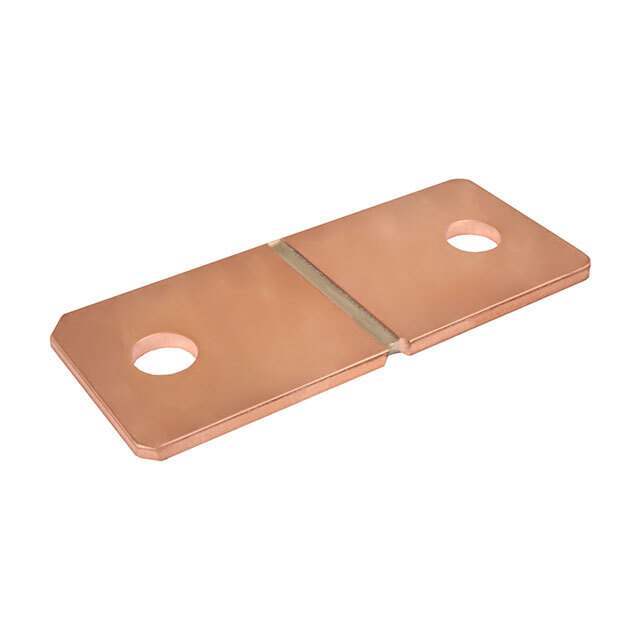

WSBS8536L0250JK Vishay Dale
Same model may have multiple batches, images only for reference.

WSBS8536L0250JK

Part No WSBS8536L0250JK
Manufacturer Vishay
Catalog Specialized Resistors
Description 25 UOHMS 5% 50W SHUNT, BATTERY S
Datasheet
WSBS8536L0250JK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308159-WSBS8536L0250JK
Manufacturer Vishay Dale
Category Resistors>Specialized Resistors
Packaging Bulk
Part Status Active
Type Shunt, Battery
Composition Metal Element
Resistance (Ohms) 25 µOhms
Tolerance ±5%
Operating Temperature -65°C ~ 170°C
Ultra Librarian 3D Model Ultra Librarian WSBS8536L0250JK CAD Model

Description

FEATURES
• High power to resistor size ratio
• Proprietary processing technique produces extremely low resistance values
• All welded construction
• Solid metal manganese-copper alloy resistive element with low TCR (< 20 ppm/°C)
• Very low inductance (< 5 nH)
• Low thermal EMF (< 3 μV/°C)
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
