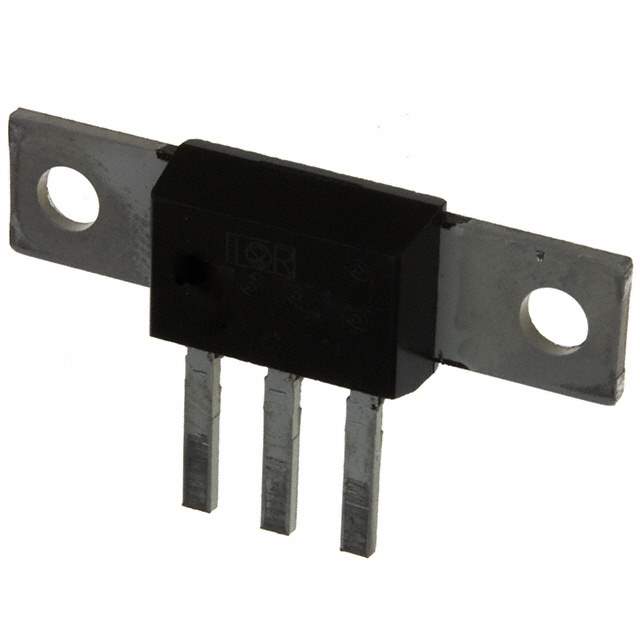

VS-85CNQ015APBF Real Image
Same model may have multiple batches, images only for reference.

VS-85CNQ015APBF

Part No VS-85CNQ015APBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 15V D618
Datasheet
VS-85CNQ015APBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 450mV @ 80A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 20mA @ 15V
Operating Temperature - Junction -55°C to 125°C
Mounting Chassis Mount
Case / Package D-61-8
Win Source Part Number 139246-VS-85CNQ015APBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Ultra Librarian 3D Model Ultra Librarian VS-85CNQ015APBF CAD Model

Description

The VS-85CNQ015APBF is a Schottky diode manufactured by Vishay.

  • Maximum DC Reverse Voltage: 15V
  • Maximum Forward Voltage: 450mV @ 80A
  • Current Rating: 40A
  • Configuration: 1 Pair Common Cathode
  • Package: D-61-8
  • Operating Temperature Range: -55°C to 125°C
  • Ideal For: Discrete Semiconductor Products
