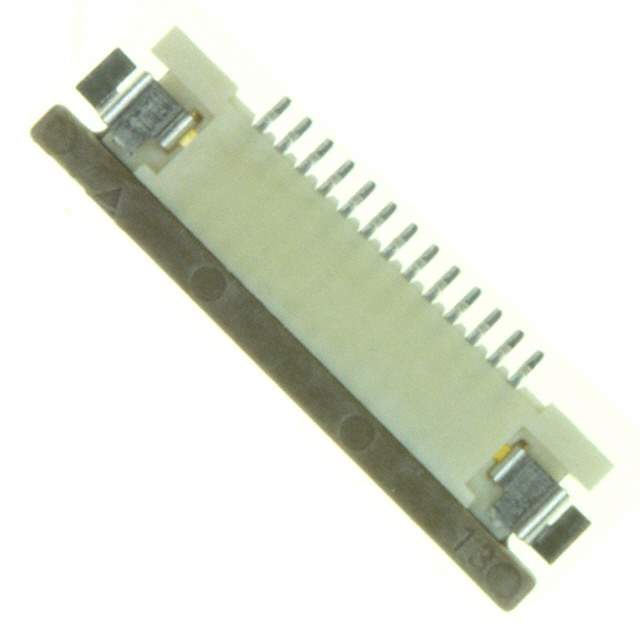

XF2L-1335-1A

Name: XF2L-1335-1A
Brand: Omron
SKU: 804166
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF2L-1335-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 13POS 0.50MM R/A / ZIF Slide-locking Connector (0.5-mm pitch)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel
Part Status	Obsolete (End Of Life)
Flat Flex Type	FPC
Mounting Style	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	13
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.047" (1.20mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90μin (0.150μm)
Housing Color	Natural
Actuator Color	Brown
Mating Cycles	20
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804166-XF2L-1335-1A
Ultra Librarian 3D Model	Ultra Librarian XF2L-1335-1A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2L-1335-1A is a 13-position FFC, FCB thickness of 0.30mm connector with a pitch of 0.020" (0.50mm).

Pitch: 0.020" (0.50mm)
Mounting Style: Surface Mount, Right Angle
Termination: Solder
Insertion Force: Zero Insertion Force (ZIF)
Locking Feature: Slide Lock
Mating Cycles: 20
Connector/ Contact Type: Contacts, Bottom
Cable End Type: Straight
Voltage Rating: 50V
Temperature Range: -30°C to 85°C
