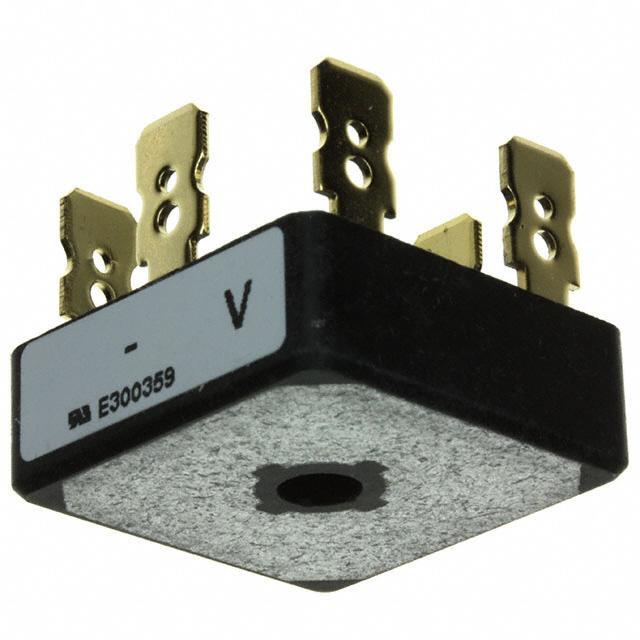

VS-26MT80 Vishay
Same model may have multiple batches, images only for reference.

VS-26MT80

Part No VS-26MT80
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 800V 25A D-63
Datasheet
VS-26MT80 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 100μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 5-Square, D-63
Manufacturer Package D-63
Win Source Part Number 762036-VS-26MT80
Popularity Medium
Supply and Demand Status Limited
Family Name VS-26MT80
ECCN EAR99
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian VS-26MT80 CAD Model

Description

Vishay Semiconductor Diodes Division produces the VS-26MT80, a three-phase standard technology diode.

  • Diode Type: Rectifier
  • Average Rectified Current: 25A
  • Reverse Leakage Current @ Vr: 100μA @ 800V
  • Peak Reverse Voltage: 800V
  • Family Name: VS-26MT80
  • Package: 5-Square, D-63
  • Manufacturer Package: D-63
  • ECCN: EAR99
  • EOL Date: Unknown
  • Supply and Demand Status: Limited
