Same model may have multiple batches, images only for reference.

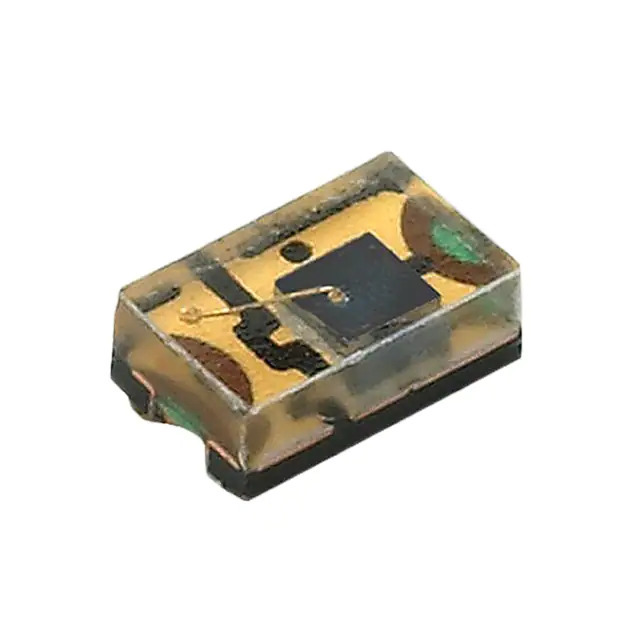

VEMD1060X01 Vishay
Same model may have multiple batches, images only for reference.

VEMD1060X01

Part No VEMD1060X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 350 TO 1070 NM
Datasheet
VEMD1060X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Wavelength 820nm
Color - Enhanced -
Spectral Range 350nm ~ 1070nm
Diode Type PIN
Responsivity @ nm -
Response Time 60ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 5nA
Active Area 0.23mm²
Viewing Angle 140°
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Base Product Number VEMD1060
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1372036-VEMD1060X01
Ultra Librarian 3D Model Ultra Librarian VEMD1060X01 CAD Model

Description

The VEMD1060X01 is a photodiode from Vishay Semiconductor Opto Division.

  • Spectral Range: 350nm to 1070nm
  • Voltage Rating: 20V
  • Series: Automotive, AEC-Q101
  • Package / Case: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Diode Type: PIN
  • Viewing Angle: 140°
  • Response Time: 60ns
  • Dark Current: 5nA
  • Active Area: 0.23mm²
  • Operating Temperature: -40°C to 110°C
