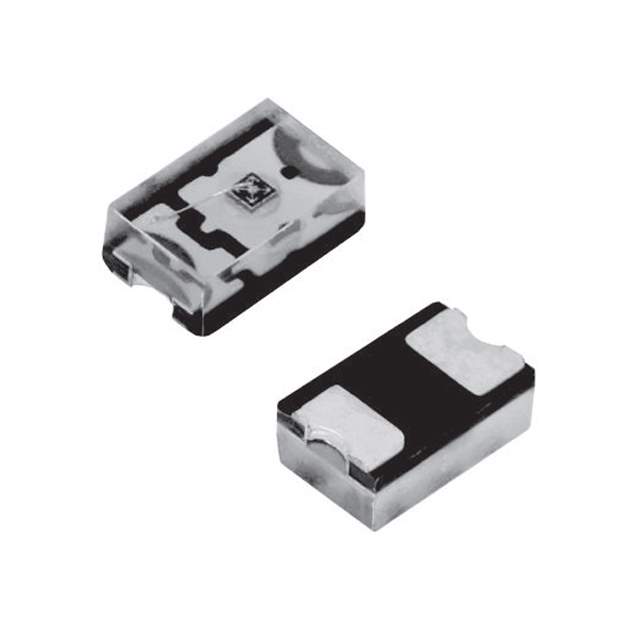

TEMD7000X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD7000X01

Part No TEMD7000X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 700 TO 1070 NM
Datasheet
TEMD7000X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 26 Weeks
Features Photodiode 900nm 100ns 120° 0805 (2012 Metric)
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package 0805 (2012 Metric)
Family Name TEMD7000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.6050
Other Part Number TEMD7000X01CT, TEMD7000X01DKR, TEMD7000X01TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899485-TEMD7000X01
Ultra Librarian 3D Model Ultra Librarian TEMD7000X01 CAD Model

Description

Vishay TEMD7000X01 is a photodiode sensor with a wavelength of 900 nm and a response time of 100 ns.

  • Viewing Angle: The sensor has a wide viewing angle of 120°
  • Mounting: and is surface mountable with a package of 0805 (2012 Metric).
  • Operating Temperature (Max): The sensor has a maximum operating temperature of 100 °C
  • Operating Temperature (Min): and a minimum operating temperature of -40 °C.
  • Compliance: The sensor is compliant with RoHS
  • Application: and is used in Sensors.
