Same model may have multiple batches, images only for reference.

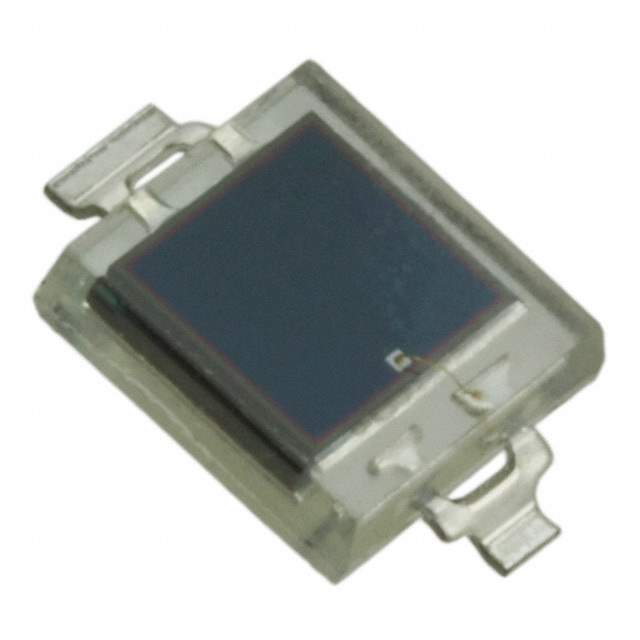

VBPW34S Real Image
Same model may have multiple batches, images only for reference.

VBPW34S

Part No VBPW34S
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN HI SPEED HI SENS
Datasheet
VBPW34S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 940nm
Spectral Range 430nm to 1100nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Dimension 2-SMD, Gull Wing
Win Source Part Number 097239-VBPW34S
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian VBPW34S CAD Model

Description

The Vishay VBPW34S is a surface mount PIN diode with a voltage - DC reverse (Vr) (max) of 60V.

  • Voltage - DC Reverse (Vr) (max): 60V
  • Viewing Angle: 130°
  • Wavelength: 940nm
  • Category: Sensors, Transducers
  • Status: Active
  • Temperature Range: -40°C to 100°C
  • Package: 2-SMD, Gull Wing
  • Packaging: Reel - TR
  • Current - Dark (typ): 2nA
  • Active Area: 7.5mm²
  • Popularity: Medium
  • Remaining Information: 57 pct.
