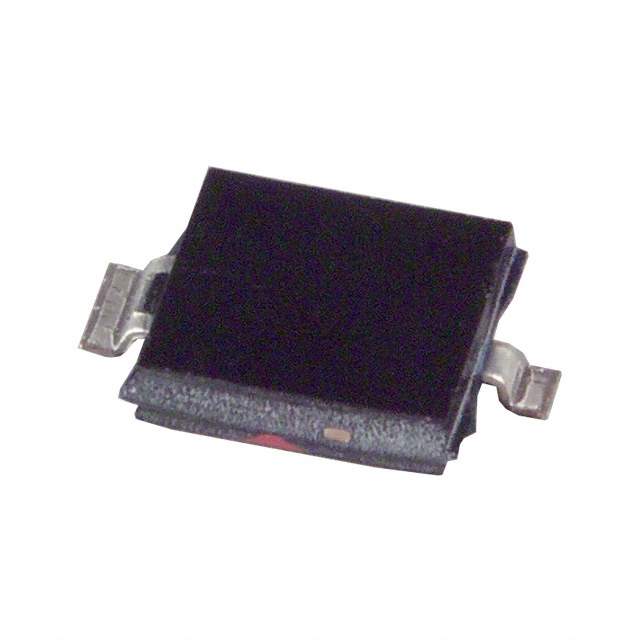

BPW 34 FS-Z Real Image
Same model may have multiple batches, images only for reference.

BPW 34 FS-Z

Part No BPW 34 FS-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 950NM 2SMD GW / Photodiode 950nm 20ns 120° 2-SMD, Gull Wing
Datasheet
BPW 34 FS-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Wavelength 950nm
Spectral Range 780nm ~ 1100nm
Diode Type PIN
Response Time 20ns
Voltage - DC Reverse (Vr) (Max) 16 V
Current - Dark (Typ) 2nA
Active Area 7mm2
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 2-SMD, Gull Wing
Base Product Number BPW 34
Standard Package 1,500
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1352180-BPW 34 FS-Z
Ultra Librarian 3D Model Ultra Librarian BPW 34 FS-Z CAD Model

Description

The BPW 34 FS-Z is a PIN diode type photodiode that has a response time of 20ns.

  • Diode Type: PIN Diode, Photodiode
  • Response Time: 20ns
  • Packaging: Tape and Reel
  • Standard Package: 1,500
  • Viewing Angle: 120 degrees
  • Wavelength: 950nm
  • Spectral Range: 780nm to 1100nm
  • Current-Dark (Typ): 2nA
  • Active Area: 7mm2
  • Mounting Type: Surface Mount
  • Package / Case: 2-SMD, Gull-Wing
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 4 (72 hours)
  • HTSUS: 8541.49.1050
  • Manufacturer: ams-OSRAM USA Inc.
