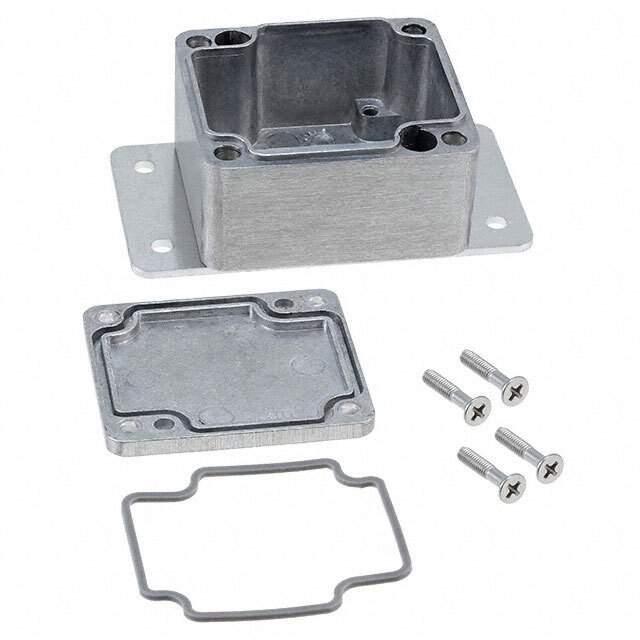

AN-2801-A Real Image
Same model may have multiple batches, images only for reference.

AN-2801-A

Part No AN-2801-A
Manufacturer Bud Industries
Catalog Boxes, Enclosures, Racks
Description BOX ALUM NAT 2.520"L X 2.270"W / Box Metal, Aluminum Natural Cover Included 2.520" L x 2.270" W (64.01mm x 57.66mm) X 1.378" (35.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Bud Industries
Series AN-A
Package Bulk
Container Type Box
Dimension 2.520" L x 2.270" W (64.01mm x 57.66mm)
Height 1.378" (35.00mm)
Area (L x W) 5.72in² (36.9cm²)
Design Cover Included
Material Metal, Aluminum
Color Natural
Thickness 0.130" (3.30mm)
Features Mounting Flange, PCB Supports, Watertight
Ratings IP68, NEMA 4X,6,6P,12,13
Weight 0.375 lb (170.1 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7612.90.1090
Other Names 377-2316
Standard Package 1
Win Source Part Number 970778-AN-2801-A
Ultra Librarian 3D Model Ultra Librarian AN-2801-A CAD Model

Description

The AN-2801-A is a box enclosure that is manufactured by Bud Industries.

  • Series: AN-A
  • Color: Natural
  • Features: Mounting flange, PCB supports, and is watertight
  • Material: Metal, Aluminum
  • Thickness: 0.130" (3.30mm)
  • Ratings: IP68, NEMA 4X,6,6P,12,13
  • Dimension: 2.520" L x 2.270" W (64.01mm x 57.66mm)
