Same model may have multiple batches, images only for reference.

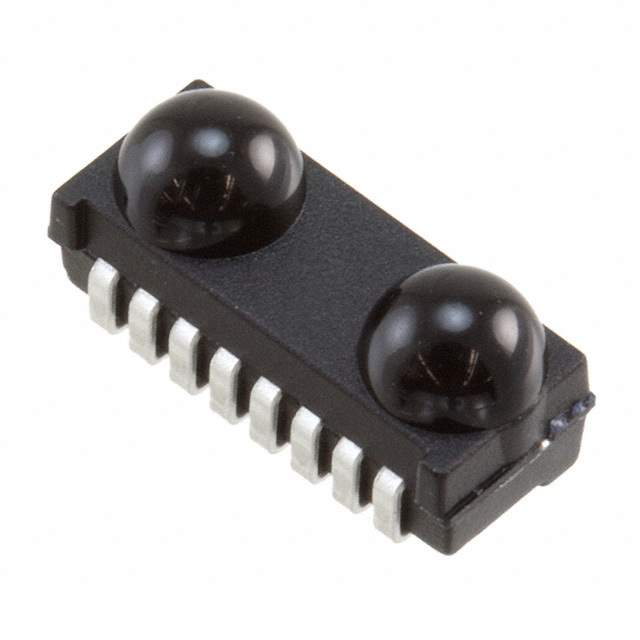

TFDU4101-TR3 Real Image
Same model may have multiple batches, images only for reference.

TFDU4101-TR3

Part No TFDU4101-TR3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 115.2KBIT 4MM 8-SMD / IRDA TX/RX 0.1152Mbps 2.5V/3.3V/5V 8-Pin Ultra Small Profile T/R
Datasheet
TFDU4101-TR3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V to 5.5 V
Idle Current, Typ @ 25°C 75μA
Link Range, Low Power 1m
Orientation Side View
Temperature Range - Operating -30°C to 85°C
Size 9.7mm x 4.7mm x 4.0mm
Standards IrPHY 1.0
Win Source Part Number 032101-TFDU4101-TR3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Medical, Industrial
Family Name TFDU4101
Introduction Date October 04, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TFDU4101-TR3 CAD Model

Description

This component is used in Consumer Electronics, Medical, and Industrial applications.

  • Win Source Part Number: 032101-TFDU4101-TR3
  • Data Rate: 115.2kbs (SIR)
  • Link Range: 1m
  • Orientation: side view
  • Size: 9.7mm x 4.7mm x 4.0mm
  • Operating Supply Voltage: 2.4 V to 5.5 V
  • Temperature Range: -30°C to 85°C
