Same model may have multiple batches, images only for reference.

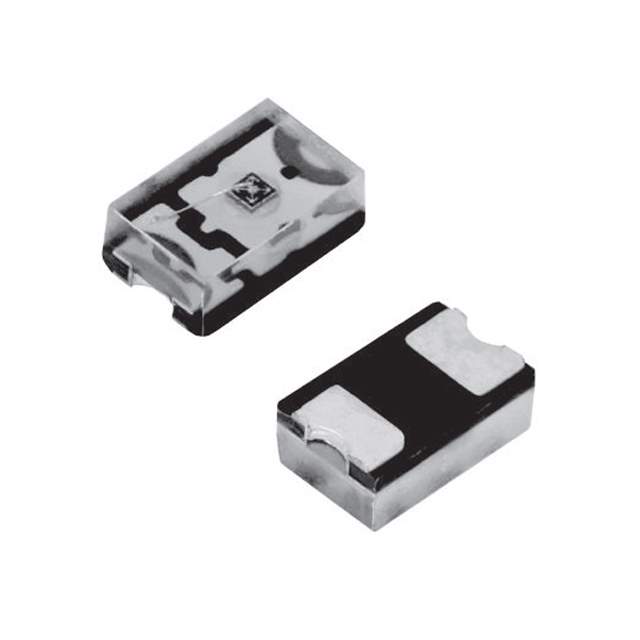

TEMD7100X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD7100X01

Part No TEMD7100X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN 950NM 0805
Datasheet
TEMD7100X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 950nm
Spectral Range 750nm to 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 120°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Dimension 0805 (2012 Metric)
Win Source Part Number 093034-TEMD7100X01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TEMD7100X01 CAD Model

Description

The Vishay TEMD7100X01 is a PIN diode that is suitable for use in sensors and transducers.

  • Maximum Reverse Voltage: 60V
  • Response Time: 100ns
  • Viewing Angle: 120°
  • Wavelength Range: 750nm to 1050nm
  • Active Area: 0.23mm²
  • Operating Temperature Range: -40°C to 100°C

The device is packaged in a reel and is mounted using surface-mount technology. in the open market.
