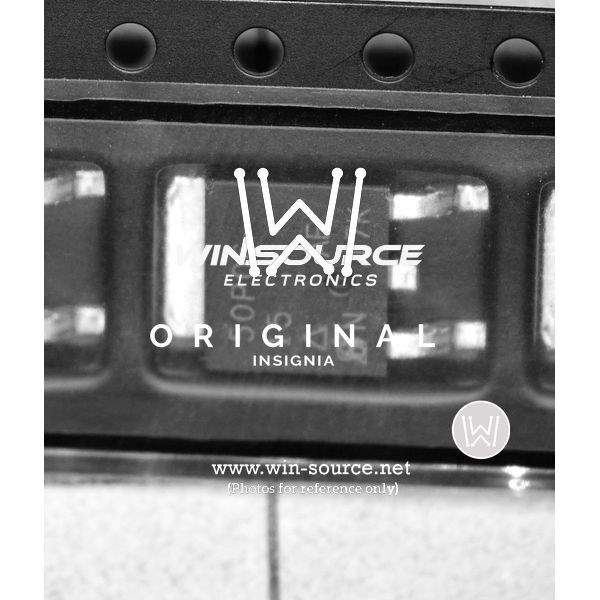

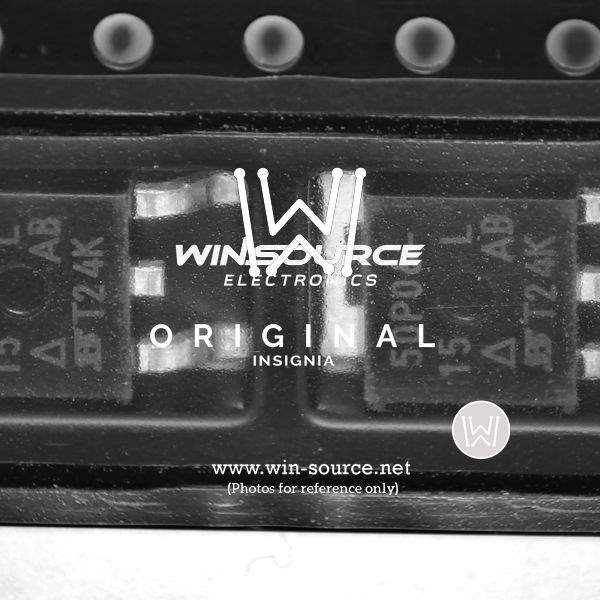

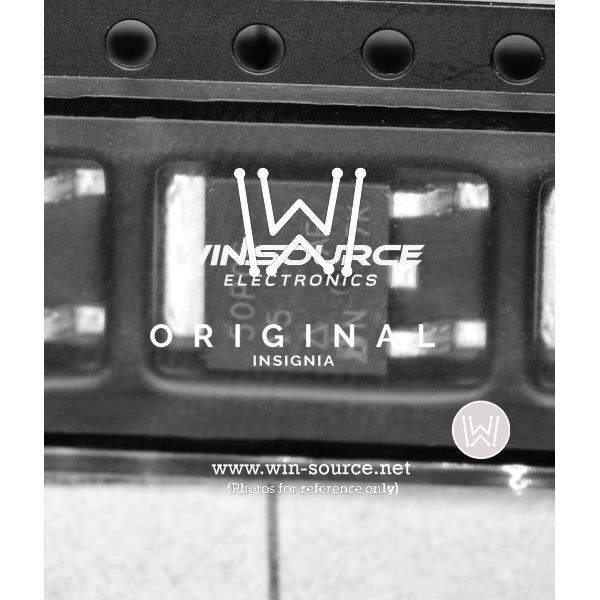

The SUD50P06-15L is a P-Channel MOSFET from Vishay Siliconix, part of their SkyFET® series. This MOSFET is designed for high-efficiency power conversion and load switching applications, offering very low on-resistance and excellent switching performance. It is particularly suited for use in synchronous rectification, DC-DC converters, and other power management circuits.

Applications:

• Synchronous Rectification: Used in power supplies and DC-DC converters to improve efficiency.
• DC-DC Converters: Employed in step-up and step-down voltage conversion circuits.
• Load Switching: Provides efficient control of power to various loads in electronic systems.
• Battery Management Systems (BMS): Used in battery charging and discharging circuits.
• Motor Control: Suitable for controlling small DC motors.

Features:

• P-Channel MOSFET: Simplifies implementation in low-side switching configurations.
• Low On-Resistance (Rds(on)): Minimizes conduction losses, improving efficiency.
• Fast Switching Speed: Enables quick response times in switching applications.
• SkyFET® Power MOSFET Technology: Uses Vishay's SkyFET® technology for optimized performance.
• Low Gate Charge (Qg): Reduces switching losses and improves efficiency.
• Avalanche Rated: Designed to withstand avalanche conditions, enhancing reliability.
• Lead (Pb)-free and RoHS Compliant: Complies with environmental standards for lead-free manufacturing.
• PowerPAK® SO-8 Package: Provides efficient heat dissipation and compact board design.

Benefits:

• High Efficiency: Low on-resistance and low gate charge minimize power losses, resulting in energy savings.
• Compact Design: Small surface mount package enables high-density board layouts.
• Reliable Performance: Robust design ensures stable operation in demanding applications.
• Simplified Circuit Design: P-channel configuration simplifies implementation in numerous applications.
• Improved Thermal Performance: PowerPAK® package improves heat dissipation, enabling higher current handling.

Additional Details:

The SUD50P06-15L typically has a drain-source voltage (Vds) rating of -60V, a continuous drain current (Id) rating of around -15A (depending on the operating conditions), and a gate-source voltage (Vgs) rating of ±20V. The on-resistance (Rds(on)) is very low, typically in the range of 15 milliohms. It is essential to consult the datasheet for the specific ratings and characteristics before using this MOSFET in a design. This device is commonly used in high-efficiency power supplies, battery-powered devices, and various industrial applications where efficient power switching is crucial.
