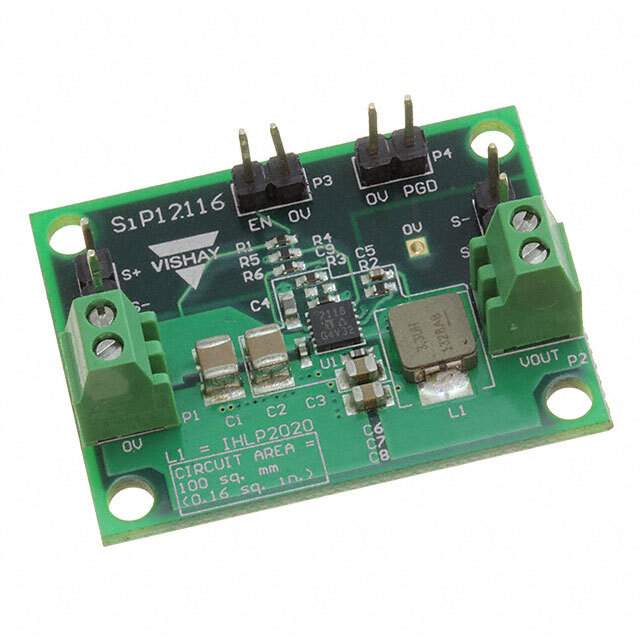

SIP12116DB Real Image
Same model may have multiple batches, images only for reference.

SIP12116DB

Part No SIP12116DB
Manufacturer Vishay
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Datasheet
SIP12116DB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Vishay Siliconix
Package Bulk
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 0.6V ~ 5.5V
Current - Output 3A
Voltage - Input 4.5V ~ 15V
Regulator Topology Buck
Frequency - Switching 600kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part SIP12116
Base Product Number SIP121
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284143-SIP12116DB
Ultra Librarian 3D Model Ultra Librarian SIP12116DB CAD Model

Description

The Vishay Siliconix development board is an evaluation board for DC/DC and AC/DC (Off-Line) SMPS.

  • Board Type: fully populated
  • Regulator Topology: buck
  • Voltage Output: 0.6V to 5.5V
  • Description: designed for DC/DC step-down
  • Switching Frequency: 600kHz
  • IC/Part: SIP12116
  • Outputs: one non-isolated output
  • Status: obsolete
  • Packaging: bulk
  • ECCN: EAR99
  • HTSUS code: 8542.39.0001
