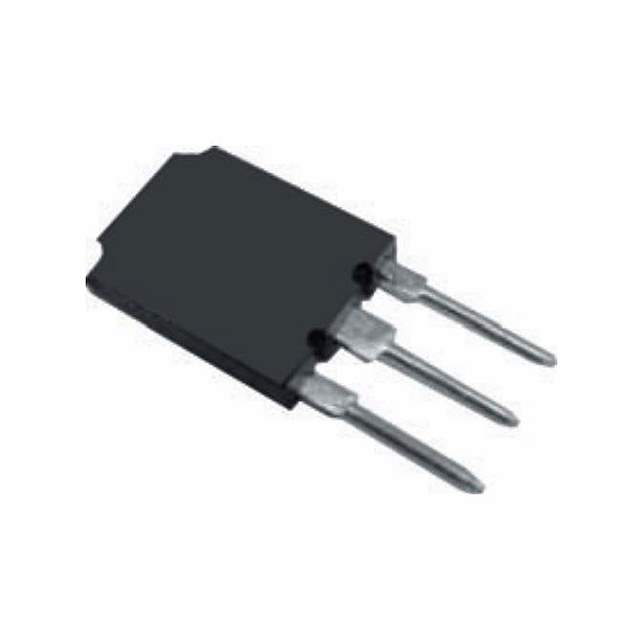

Same model may have multiple batches, images only for reference.

SIHFPS38N60L-GE3

Name: SIHFPS38N60L-GE3
Brand: Vishay
SKU: 1041525
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SIHFPS38N60L-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	POWER MOSFET SUPER-247, 150 M @ / N-Channel 600 V 38A (Tc) 540W (Tc) Through Hole SUPER-247™ (TO-274AA)
Datasheet	SIHFPS38N60L-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	150mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	320 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7990 pF @ 25 V
Power Dissipation (Max)	540W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-247™ (TO-274AA)
Package / Case	TO-274AA
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	742-SIHFPS38N60L-GE3
Standard Package	30
Win Source Part Number	1041525-SIHFPS38N60L-GE3
Ultra Librarian 3D Model	Ultra Librarian SIHFPS38N60L-GE3 CAD Model

Alternative Products

Description

The Vishay Siliconix SIHFPS38N60L-GE3 is an N-channel MOSFET with a maximum drain to source voltage rating of 600V and a continuous drain current rating of 38A at 25°C.

Maximum Drain to Source Voltage: 600V
Continuous Drain Current: 38A @ 25°C
Rds On (Max): 150mOhm @ 23A, 10V
Gate Charge (Qg) (Max): 320 nC @ 10 V
Package: TO-274AA
Temperature Range: -55°C to 150°C
Ideal for: Use in discrete semiconductor products
