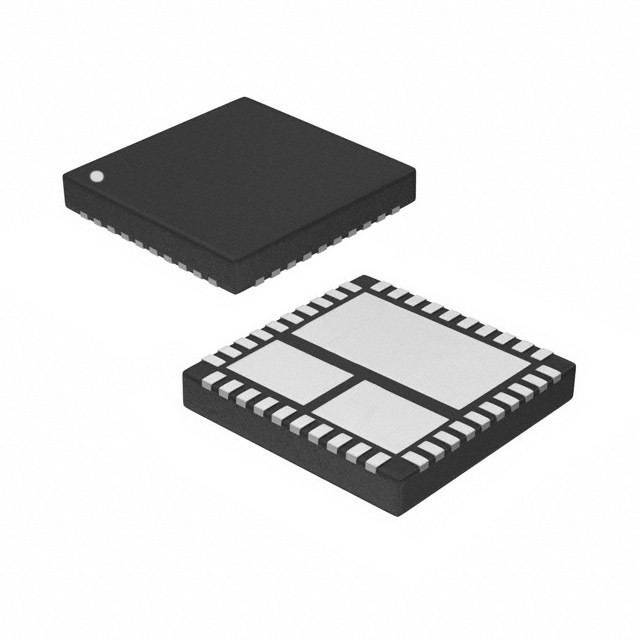

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Applications Synchronous Buck Converters
Load Type Inductive
Technology DrMOS
Rds On (Typ) 1.7 mOhm LS, 6 mOhm HS
Channel Output Current 35A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 3 V to 16 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Bootstrap Circuit, Diode Emulation, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting SMD (SMT)
Case / Package PowerPAK MLP66-40
Win Source Part Number 115055-SIC769CD-T1-E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SIC769CD-T1-E3 CAD Model

Description

The Vishay 115055-SIC769CD-T1-E3 is a DrMOS technology-based Integrated Circuit with a channel output current of 35A.

  • Features: bootstrap circuit, diode emulation, and status flag
  • Application: synchronous buck converters
  • Fault Protection: against over-temperature, shoot-through, and UVLO
  • Operating Temperature: -40°C to 150°C (TJ)
  • Voltage Load Range: 3V to 16V
  • RDS on (Typ): 1.7 mOhm LS and 6 mOhm HS
  • Load Type: inductive
  • Package: PowerPAK MLP66-40
  • Popularity: medium
