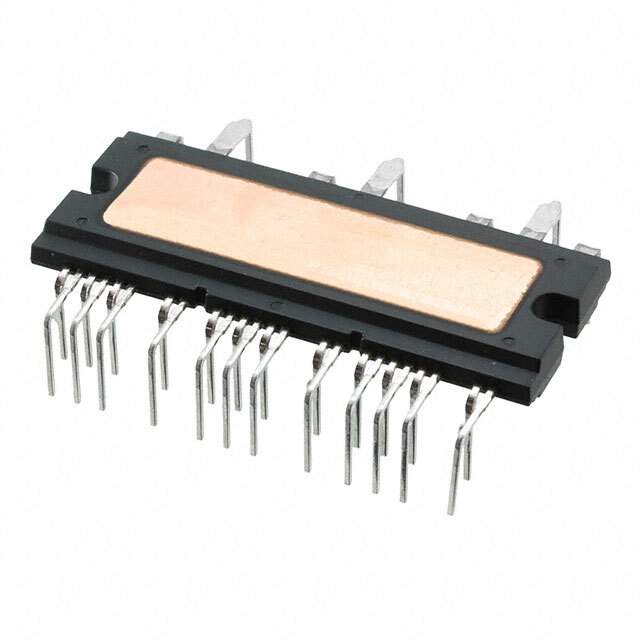

SCM1246MF

Part No SCM1246MF
Manufacturer Sanken
Catalog PMIC - Full, Half - Bridge Drivers
Description IC BRIDGE DRIVER PAR SCM33
Datasheet
SCM1246MF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Applications AC Motors
Load Type Inductive
Technology IGBT
Channel Output Current 30A
Current - Peak Output 45A
Supply Voltage - Operating 13.5 V to 16.5 V
Voltage - Load 400V (Max)
Temperature Range - Operating 125°C (TJ)
Features Auto Restart, Bootstrap Circuit
Fault Protection Current Limiting, Over Temperature, UVLO
Mounting Through Hole
Case / Package 33-PowerDIP LF2552
Win Source Part Number 211540-SCM1246MF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SCM1246MF CAD Model

Description

The IGBT from Sanken is a high-performance electronic component designed for use in AC motors.

  • Features: Auto-restart function and bootstrap circuit
  • Fault Protection: including current limiting, over-temperature protection, and UVLO
  • Voltage Load: up to 400V
  • Peak Output Current: 45A
  • Mounting: Through-hole
  • Case: PowerDIP LF2552
  • Category: Integrated Circuits
  • Production Status: active
  • Supply and Demand Status: limited
