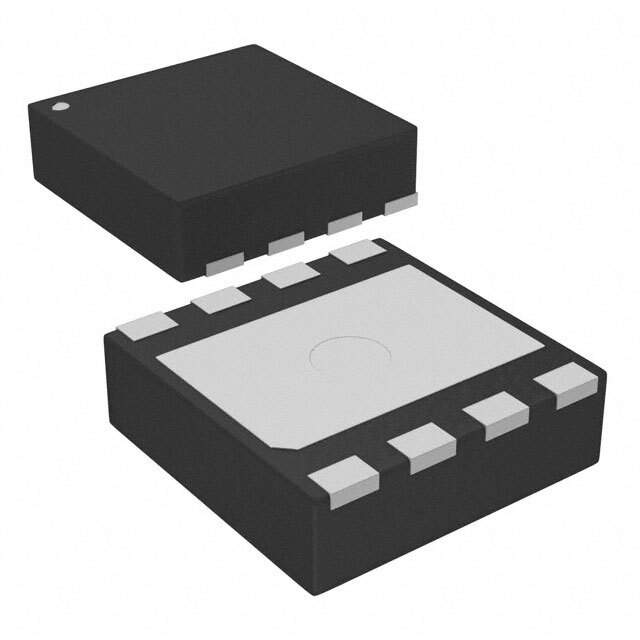

AP1017AEN Real Image
Same model may have multiple batches, images only for reference.

AP1017AEN

Part No AP1017AEN
Manufacturer Asahi Kasei Microsystems
Catalog PMIC - Full, Half - Bridge Drivers
Description IC H-BRIDGE DVR 1CH 12V 8SON  /  Half Bridge (2) Driver General Purpose Power MOSFET 8-SON (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Asahi Kasei Microdevices/AKM
Package Tape & Reel
Product Status Obsolete
Output Configuration Half Bridge (2)
Applications General Purpose
Interface Logic
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 470mOhm LS + HS
Current - Output / Channel 1.56A
Current - Peak Output 3.3A
Voltage - Supply 2.7V ~ 3.6V
Voltage - Load 1.8V ~ 12V
Temperature Range - Operating -30°C ~ 150°C (TJ)
Fault Protection Over Temperature, UVLO
Mounting SMD (SMT)
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package 8-SON (2x2)
Base Product Number AP1017
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names AP1017AENCT,AP1017AENTR,AP1017AEN-L,AP1017AENDKR,AP1017AEN-ND
Standard Package 5,000
Win Source Part Number 961146-AP1017AEN
Ultra Librarian 3D Model Ultra Librarian AP1017AEN CAD Model

Description

The AP1017AEN is an integrated circuit (IC) that is commonly used in electronic devices that require full or half-bridge drivers. Asahi Kasei Microdevices/AKM manufactures this component.

  • Series: PMIC
  • Lifecycle Status: Obsolete
  • Supply & Demand Status: Short
  • Interface: Logic
  • Current - Output: 1.56A
  • Current - Peak Output : 3.3A
  • Fault Protection: Over Temperature, UVLO
  • Technology: Power MOSFET
