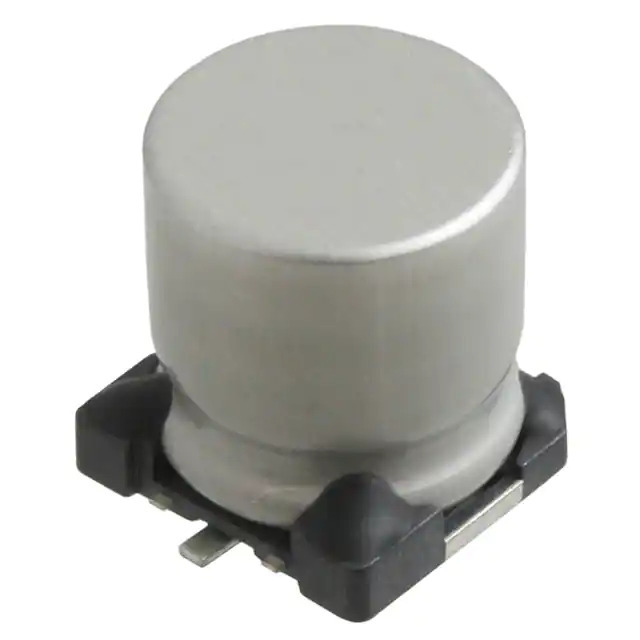

MAL215099114E3 Vishay
Same model may have multiple batches, images only for reference.

MAL215099114E3

Part No MAL215099114E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 50V SMD / 680 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10000 Hrs @ 105°C
Datasheet
MAL215099114E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 150 CRZ
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 621 mA @ 100 Hz
Impedance 85 mOhms
Lead Spacing -
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.748" (19.00mm)
Surface Mount Land Size 0.630" L x 0.630" W (16.00mm x 16.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360328-MAL215099114E3
Ultra Librarian 3D Model Ultra Librarian MAL215099114E3 CAD Model

Description

The MAL215099114E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Series: 150 CRZ
  • Capacitance: 680 µF
  • Tolerance: ±20%
  • Voltage - Rated: 50V
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Application: Automotive
  • Ratings: AEC-Q200
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.630" Dia (16.00mm)
  • Height - Seated (Max): 0.748" (19.00mm)
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
