Same model may have multiple batches, images only for reference.

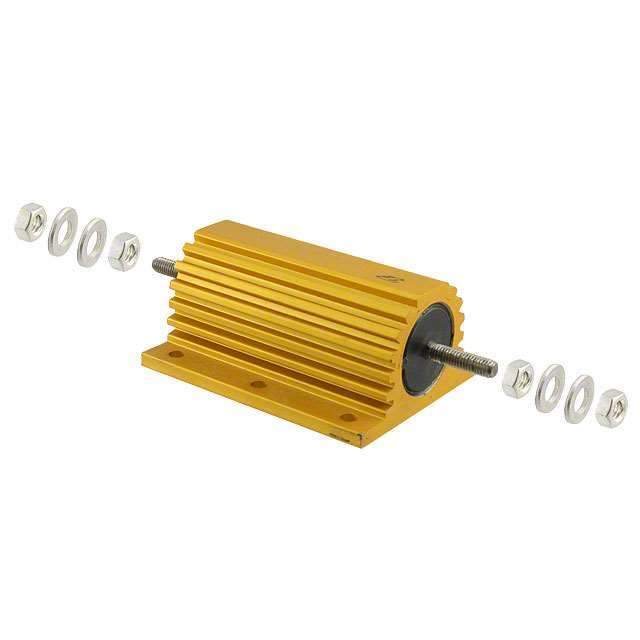

HSC20010RJ Real Image
Same model may have multiple batches, images only for reference.

HSC20010RJ

Part No HSC20010RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 10 OHM 5% 200W / 10 Ohms ±5% 200W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 200W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 3.543" L x 2.874" W (90.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
Base Product Number HSC200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 16300192,1630019-2,A102375,1630019-2-ND
Standard Package 2
Win Source Part Number 1034907-HSC20010RJ
Ultra Librarian 3D Model Ultra Librarian HSC20010RJ CAD Model

Description

The HSC20010RJ is a chassis mount resistor with a resistance of 10 Ohms and a power rating of 200W.

  • Resistance: 10 Ohms
  • Power Rating: 200W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Composition: Wirewound
  • Lead Style: Terminal Screw Type
  • Package: Axial, Box
  • Mounting: Flanges
  • Temperature Range: -55°C to 200°C
  • Manufacturer: TE Connectivity Passive Product
  • Win Source Part Number: 1034907
