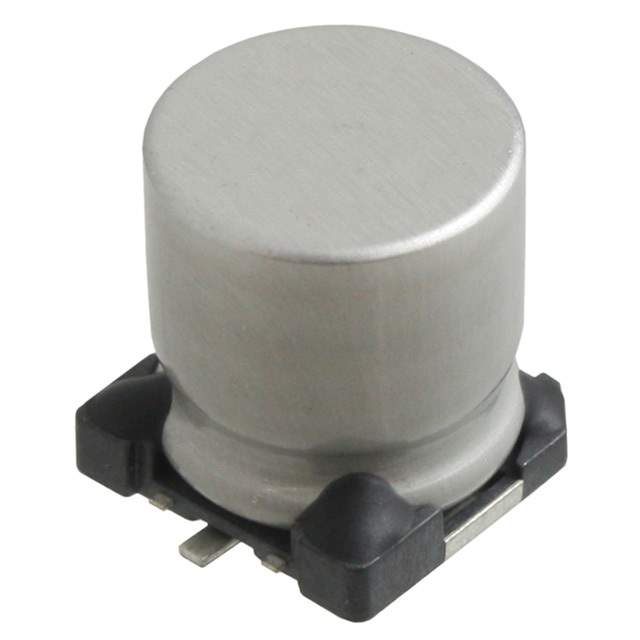

Same model may have multiple batches, images only for reference.

MAL215099112E3

Name: MAL215099112E3
Brand: Vishay
SKU: 1074771
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL215099112E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 50V SMD / 330 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet	MAL215099112E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	150 CRZ
Package	Tape & Reel
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ High Frequency	690 mA @ 100 kHz
Impedance	130 mOhms
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	4400PHDKR,4400PHTR,4400PHCT
Standard Package	250
Win Source Part Number	1074771-MAL215099112E3
Ultra Librarian 3D Model	Ultra Librarian MAL215099112E3 CAD Model

Description

The Vishay 150 CRZ aluminum electrolytic capacitor is a surface mount electronic component used in various automotive applications.

Capacitance: 330μF
Voltage Rating: 50V
Tolerance: ±20%
Impedance: 130 mOhms
Ripple Current: 690mA @ 100kHz
Temperature Range: -55°C to 105°C
