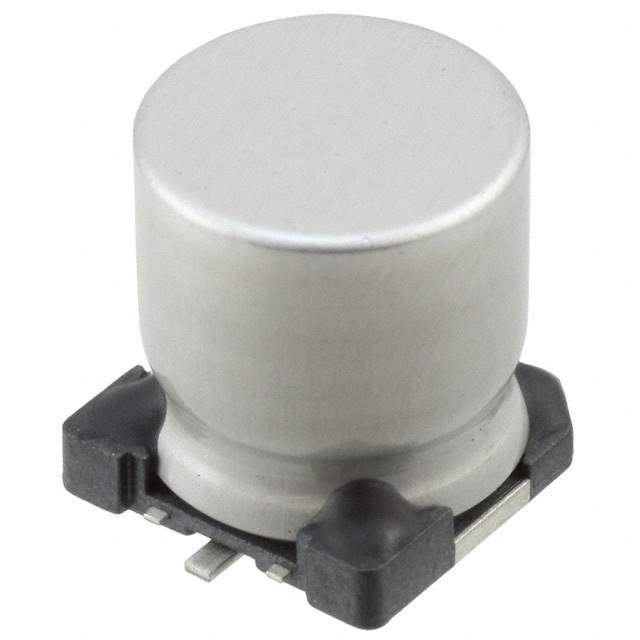

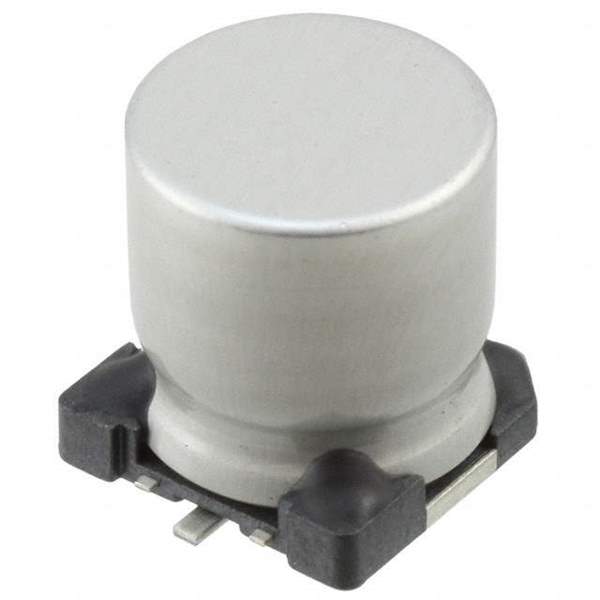

MAL214699806E3 Real Image
Same model may have multiple batches, images only for reference.

MAL214699806E3

Part No MAL214699806E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V SMD / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 125°C
Datasheet
MAL214699806E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 146 CTI
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 3000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 390 mA @ 100 Hz
Ripple Current @ High Frequency 650 mA @ 100 kHz
Impedance 210 mOhms
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size 0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 4452PHTR,4452PHCT,4452PHDKR
Standard Package 250
Win Source Part Number 1113772-MAL214699806E3
Ultra Librarian 3D Model Ultra Librarian MAL214699806E3 CAD Model

Description

The MAL214699806E3 is a radial, can - SMD type capacitor. It is a part of the 146 CTI series and has a capacitance of 100 µF.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Type: Radial, can - SMD
  • Series: 146 CTI
  • Capacitance: 100 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Polarization: Polar
  • Application: Automotive
  • Lifetime: 3000 hours @ 125°C
  • Ripple Current: 390 mA @ 100 Hz and 650 mA @ 100 kHz
