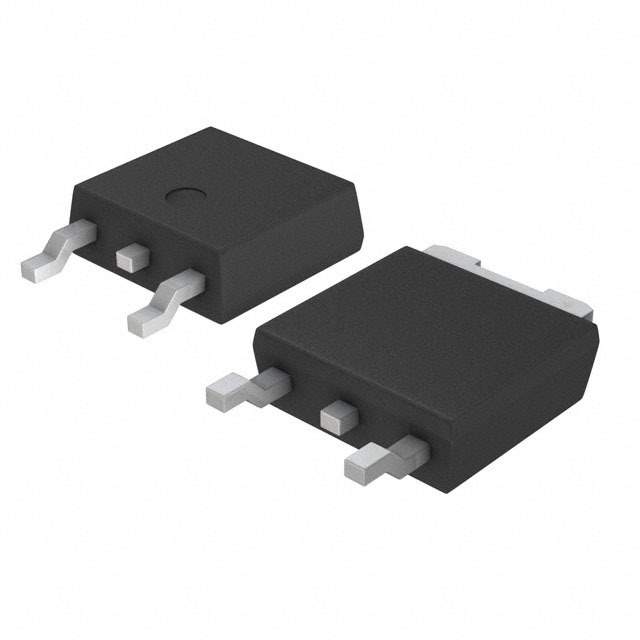

The Vishay IRFR310TRL is a MOSFET type electronic component that has a transistor polarity of N-Channel.

• Mounting Technology: SMD
• Package: Tape and Reel
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Power Dissipation (Maximum): 2.5W, 25W
• Operating Temperature: -55°C ~ 150°C
• Vds - Drain-Source Breakdown Voltage: 400V
• Id - Continuous Drain Current: 1.7A
• Rds On (Maximum) @ Id, Vgs: 3.6Ohm @ 1A, 10V
• Gate Source Voltage(th) (Maximum) @ Id: 4V @ 250μA
• Gate Charge (Qg) (Maximum) @ Vgs: 12nC @ 10V
• Gate Source Voltage (Maximum): ±20V
• Input Capacitance (Ciss) (Maximum) @ Vds: 170pF @ 25V
• Supply and Demand Status: Limited
• Pack Quantity: 3,000
