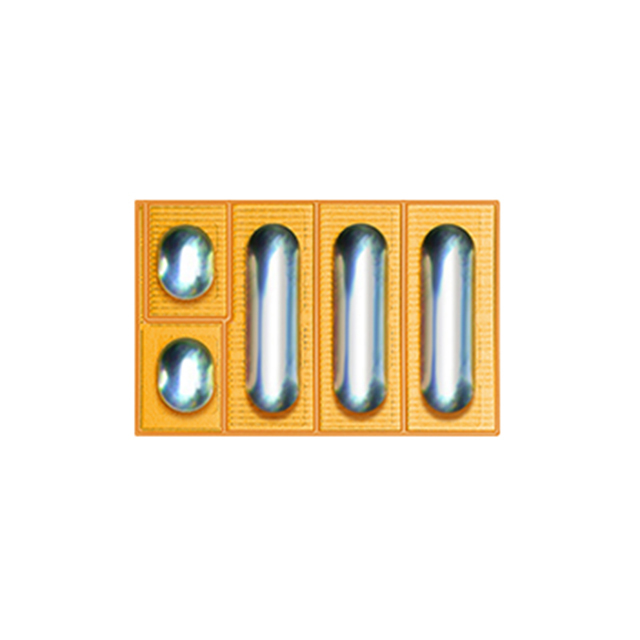

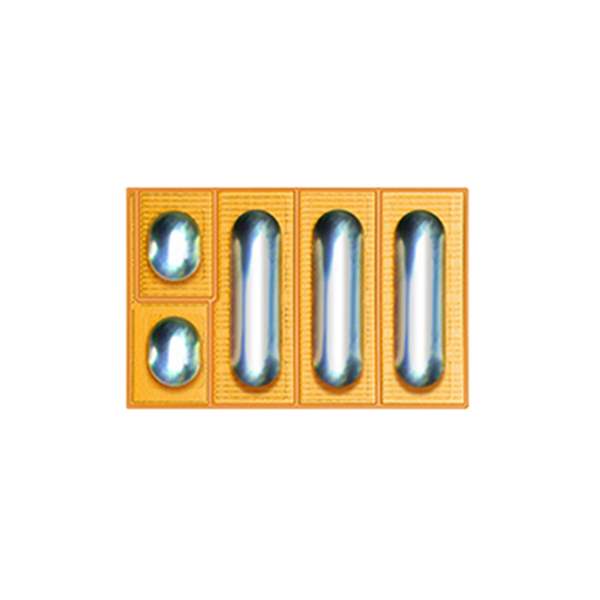

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
Mfr EPC
Series eGaN?
Part Status Not For New Designs
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 5V
Rds On (Max) @ Id, Vgs 30mOhm @ 6A, 5V
Vgs(th) (Max) @ Id 2.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs 2.2 nC @ 5 V
Vgs (Max) +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds 220 pF @ 50 V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package Die
Package / Case Die
Base Product Number EPC20
Ultra Librarian 3D Model Ultra Librarian EPC2007C CAD Model
