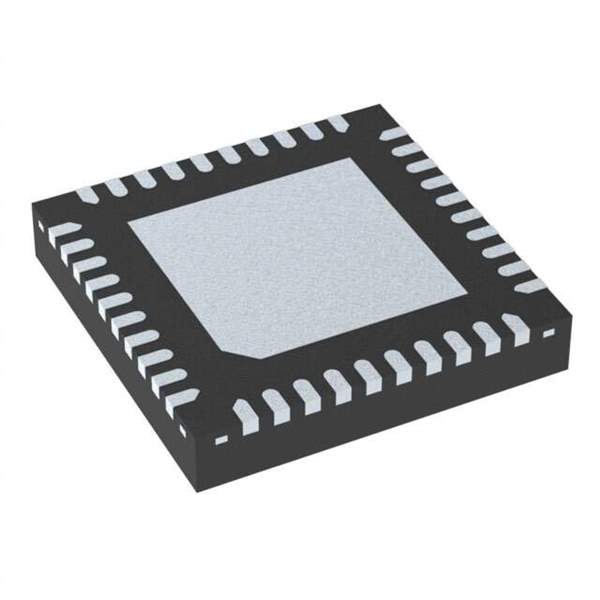

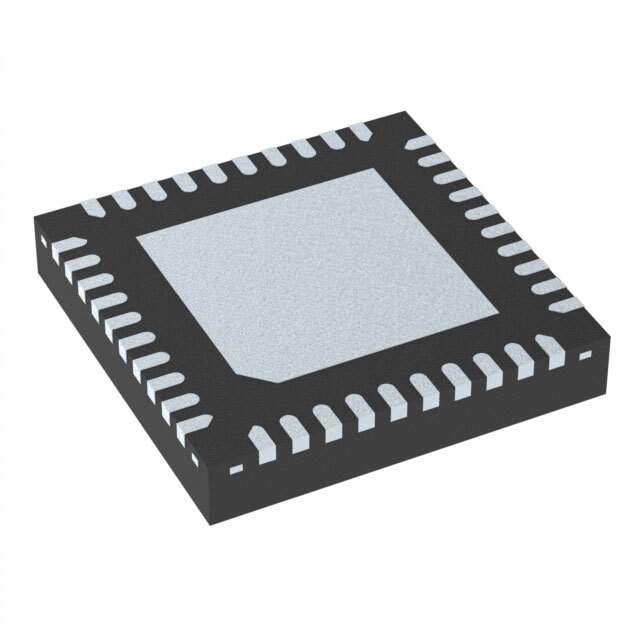

Product Overview: SN75DP149RSBR by Texas Instruments

The SN75DP149RSBR is a robust and versatile integrated circuit from Texas Instruments, designed to provide a high-performance solution for digital video and audio transmission. This compact chip is a DisplayPort to HDMI Retimer, which is essential for ensuring signal integrity in high-resolution video applications. It is particularly suitable for consumer electronics, such as home theater systems, gaming consoles, and PCs, as well as professional AV equipment.

Key Features

• DisplayPort 1.2 and HDMI 1.4 Compliance: The SN75DP149RSBR supports up to 4K resolution at 30 Hz, ensuring compatibility with a wide range of video formats and delivering crystal-clear images for an immersive viewing experience.
• High-Bandwidth Digital Content Protection (HDCP 1.3): This feature protects digital content from unauthorized copying, making the device suitable for handling premium content in multimedia applications.
• Adaptive Equalization: The built-in adaptive equalization feature enables the chip to optimize signal quality over long cable runs, ensuring the best possible video and audio fidelity.
• Low Power Consumption: Designed with power efficiency in mind, the SN75DP149RSBR minimizes power usage, which is critical for battery-powered devices and eco-friendly applications.
• Enhanced ESD Protection: The device is equipped with Electrostatic Discharge (ESD) protection, safeguarding it against damage from static electricity and enhancing its durability.

Applications

The SN75DP149RSBR is ideal for a range of applications, including:

• Video and audio signal retiming for DisplayPort to HDMI conversion
• High-definition televisions and monitors
• Home theater receivers and soundbars
• Media streaming devices and set-top boxes
• Professional audio/video equipment
• Laptops, desktops, and docking stations

With its advanced features and compliance with industry standards, the SN75DP149RSBR from Texas Instruments stands out as a reliable and efficient solution for high-definition audio and video signal processing. Whether for personal entertainment or professional display setups, this product delivers quality and performance that can be trusted.
