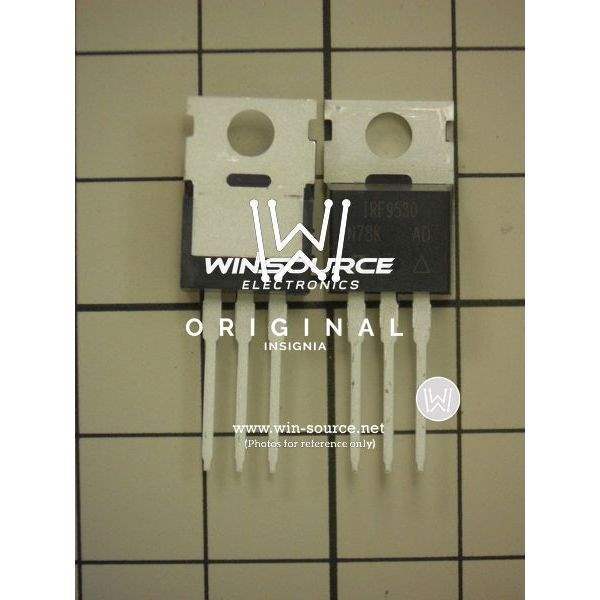

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tube
Status Obsolete
Transistor Polarity P-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 100V
Id - Continuous Drain Current 12A
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 300mOhm at 7.2A, 10V
Gate Source Voltage(th) (Maximum) at Id 4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 38nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 860pF at 25V
Power Dissipation (Maximum) 88W
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Supplier Device Package TO-220AB
Manufacturer Package TO-220-3
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1187438-IRF9530
Manufacturer Homepage www.samsung.com/Products/Semiconductor
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial, Portable Devices, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian IRF9530 CAD Model

Description

The Vishay Siliconix MOSFET is a P-channel transistor designed for use in power management, industrial, portable devices, and consumer electronics.

  • Package: TO-220AB
  • Mounting Type: Through-hole
  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current @ 25°C: 12A
  • Maximum Rds On @ Id, Vgs: 300mOhm @ 7.2A, 10V
  • Gate-Source Voltage (Maximum): ±20V
  • Input Capacitance (Ciss) (Maximum) @ Vds: 860pF @ 25V
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Gate Charge (Qg) (Maximum) @ Vgs: 38nC @ 10V
  • Power Dissipation (Maximum): 88W
  • Temperature Range for Operating: -55°C ~ 175°C
  • Status: Obsolete
