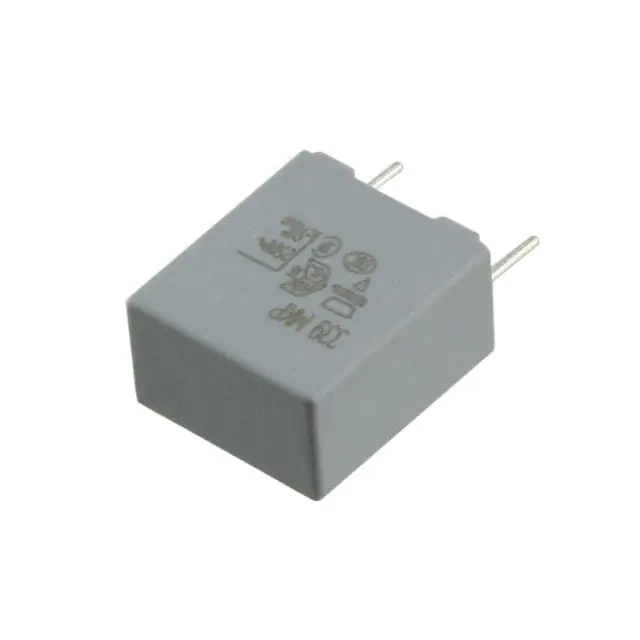

BFC233920224 Vishay
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP339
Package Bulk
Product Status Active
Capacitance 0.22 µF
Tolerance ±20%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.689" L x 0.276" W (17.50mm x 7.00mm)
Height - Seated (Max) 0.532" (13.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, X2
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1360597-BFC233920224
Ultra Librarian 3D Model Ultra Librarian BFC233920224 CAD Model

Description

The BFC233920224 is a film capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 0.22 μF
  • Voltage Rating (AC): 310V
  • Voltage Rating (DC): 630V
  • Tolerance: ±20%
  • Series: MKP339 series
  • Package / Case: Radial
  • Application: Automotive and EMI/RFI Suppression
  • Lead Spacing: 0.591" (15.00mm)
  • Size: 0.689" L x 0.276" W (17.50mm x 7.00mm)
  • Height (Seated): 0.532" (13.50mm)
  • REACH Unaffected: Yes
