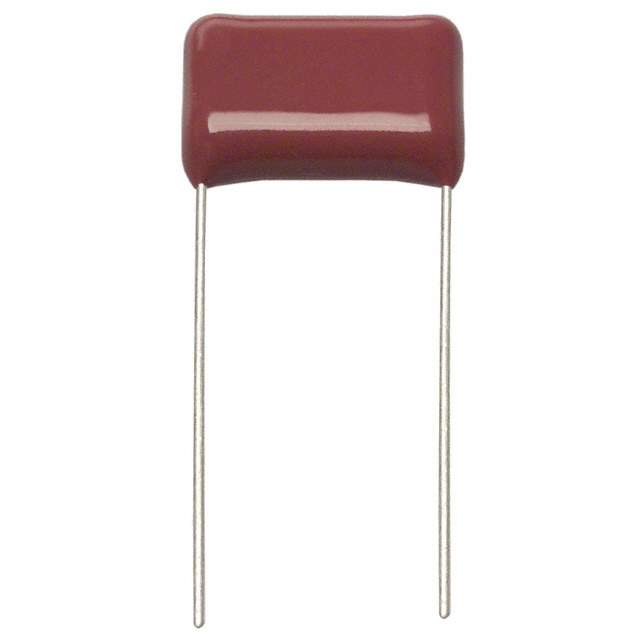

Same model may have multiple batches, images only for reference.

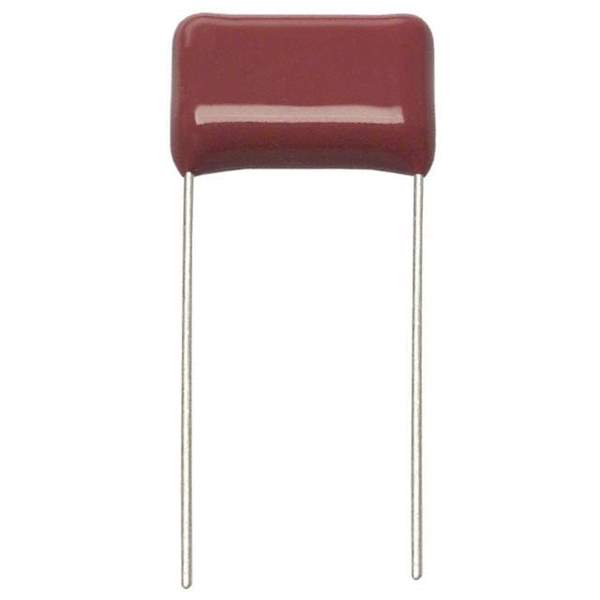

ECW-H8302RJV Real Image
Same model may have multiple batches, images only for reference.

ECW-H8302RJV

Part No ECW-H8302RJV
Manufacturer Panasonic
Catalog Film Capacitors
Description Cap Film 0.003uF 800V PP 5% (18 X 7.5 X 19mm) Radial 7.5mm 105°C Ammo Pack
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 3 nF
Mounting SMD (SMT)
Case / Package Radial
Dielectric PP
Height 19 mm
Lead Pitch 7.5 mm
Length 18 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
RoHS Compliant
Schedule B 8532250070, 8532250070
Termination Radial
Tolerance 5 %
Voltage Rating (DC) 800 V
Width 7.5 mm
Win Source Part Number 1061602-ECW-H8302RJV
Categories Film Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ECW-H8302RJV CAD Model

Description

The ECW-H8302RJV from Panasonic is a film capacitor with a capacitance of 3nF and a voltage rating of 800V DC.

  • Capacitance: 3nF
  • Voltage Rating: 800V DC
  • Mounting: Through hole
  • Termination: Radial
  • Tolerance: 5%
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
  • Height: 19mm
  • Width: 7.5mm
  • Length: 18mm
  • Applications: Film capacitor applications
  • Popularity: Low
  • Supply and Demand: Shortage
