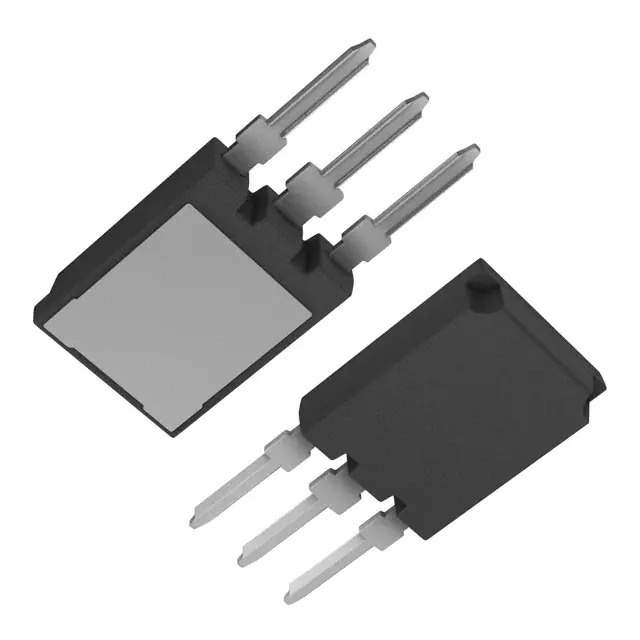

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Vishay
Package Tube
Product Status Obsolete
Voltage - Off State 1.6 kV
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Voltage - On State (Vtm) (Max) 1.4 V
Current - On State (It (AV)) (Max) 70 A
Current - On State (It (RMS)) (Max) 75 A
Current - Hold (Ih) (Max) 200 mA
Current - Off State (Max) 1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1400A @ 50Hz
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-274AA
Supplier Device Package SUPER-247™ (TO-274AA)
Base Product Number 70TPS16
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 857044-70TPS16
Ultra Librarian 3D Model Ultra Librarian 70TPS16 CAD Model

Description

The 70TPS16 is a standard recovery thyristor from Vishay.

  • Type: SCR (Silicon Controlled Rectifier)
  • Package: Tube
  • Standard Package Size: 500 pcs
  • Holding Current (Ih): 200 mA
  • Off-State Voltage: 1.6 kV
  • Gate Trigger Voltage (Vgt): 1.5V (Max)
  • Gate Trigger Current (Igt): 100 mA (Max)
  • On-State Voltage (Vtm): 1.4V (Max)
  • Average On-State Current (It (AV)): 70A (Max)
  • Operating Temperature: -40°C to 125°C
