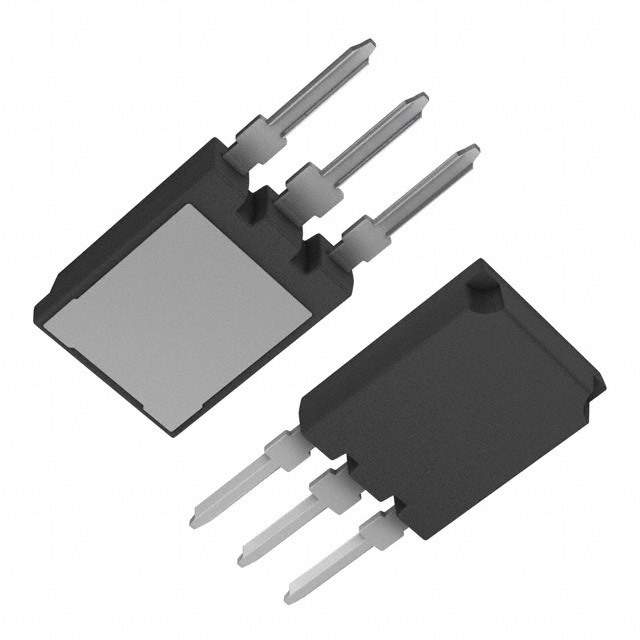

70TPS12PBF Real Image 70TPS12PBF Real Image
Same model may have multiple batches, images only for reference.
70TPS12PBF Real Image 70TPS12PBF Real Image
70TPS12PBF Real Image 70TPS12PBF Real Image
Same model may have multiple batches, images only for reference.

70TPS12PBF

Part No 70TPS12PBF
Manufacturer Vishay
Catalog SCRs - Single
Description SCR PH CONTR 1200V 70A SUPER-247
Datasheet
70TPS12PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Voltage - Off State 1200V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 100mA
Voltage - On State (Vtm) (Max) 1.4V
Current - On State (It (AV)) (Max) 70A
Current - On State (It (RMS)) (Max) 75A
Current - Hold (Ih) (Max) 200mA
Current - Off State (Max) 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1400A @ 50Hz
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Win Source Part Number 197931-70TPS12PBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VS-70TPS12
Introduction Date December 10, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian 70TPS12PBF CAD Model

Description

70TPS12PBF

The 70TPS12PBF is a robust power diode module well-suited for a variety of applications requiring efficient rectification and high current capacity. This module is designed to offer exceptional thermal performance and reliability, making it ideal for industrial settings.
