Same model may have multiple batches, images only for reference.

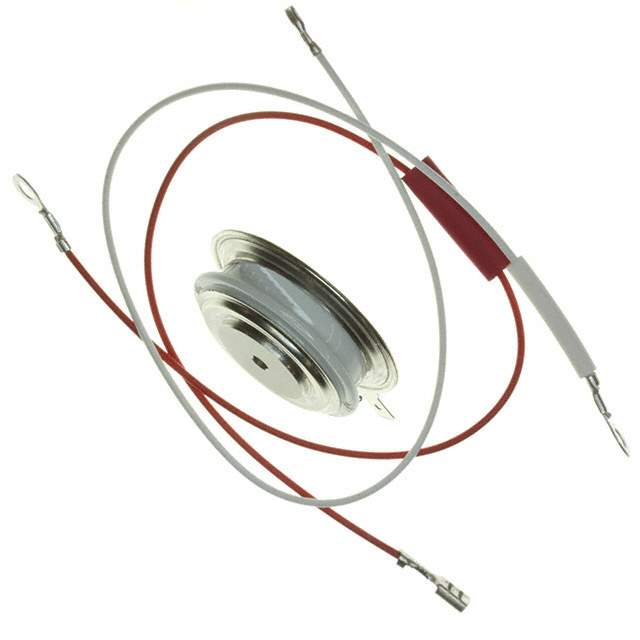

VS-ST230C16C0 Real Image
Same model may have multiple batches, images only for reference.

VS-ST230C16C0

Part No VS-ST230C16C0
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 1.6KV 780A A-PUK / SCR 1.6 kV 780 A Standard Recovery Chassis Mount TO-200AB, A-PUK
Datasheet
VS-ST230C16C0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Voltage - Off State 1.6 kV
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 150 mA
Voltage - On State (Vtm) (Max) 1.69 V
Current - On State (It (AV)) (Max) 410 A
Current - On State (It (RMS)) (Max) 780 A
Current - Hold (Ih) (Max) 600 mA
Current - Off State (Max) 30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 5700A, 5970A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case TO-200AB, A-PUK
Supplier Device Package TO-200AB, A-PUK
Base Product Number ST230
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names *ST230C16C0,VSST230C16C0,ST230C16C0,VSST230C16C0-ND,VS-ST230C16C0-ND
Standard Package 12
Win Source Part Number 1096347-VS-ST230C16C0
Ultra Librarian 3D Model Ultra Librarian VS-ST230C16C0 CAD Model

Description

The VS-ST230C16C0 is a thyristor designed for use in SCRs.

  • Maximum Current Hold (Ih): 600mA
  • Voltage Off State: 1.6kV
  • Voltage Gate Trigger (Vgt) (Max): 3V
  • Current Gate Trigger (Igt) (Max): 150mA
  • Voltage On State (Vtm) (Max): 1.69V
  • Current On State (It (AV)) (Max): 410A
  • Current On State (It (RMS)) (Max): 780A
  • Current Off State (Max): 30mA
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 5700A, 5970A
  • SCR Type: Standard Recovery
  • Mounting Type: Chassis Mount
  • Package/Case: TO-200AB, A-PUK
  • Supplier Device Package: TO-200AB, A-PUK
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Vishay General Semiconductor - Diodes Division
