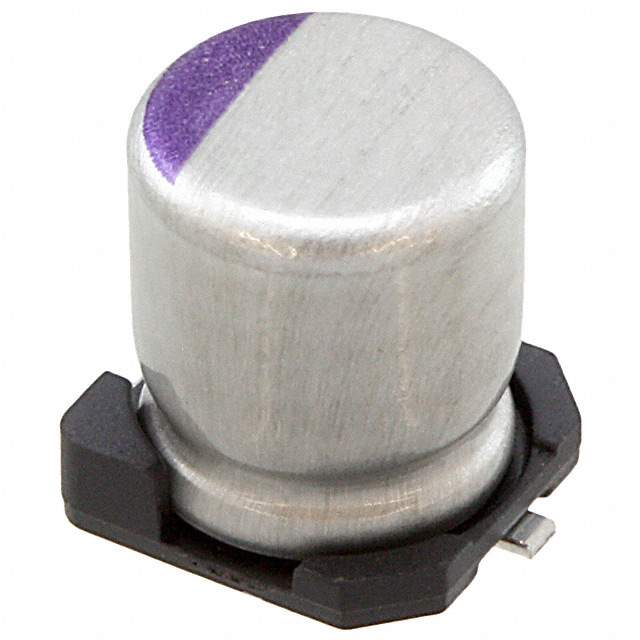

Same model may have multiple batches, images only for reference.

6SVPC100MY

Name: 6SVPC100MY
Brand: Panasonic
SKU: 547012
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6SVPC100MY
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	Surface Mount Type \| CAP ALUM POLY 100UF 20% 6.3V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel
Type	Polymer
Capacitance	100μF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime at Temp.	2000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current at Low Frequency	133mA at 120Hz
Ripple Current at High Frequency	2.66A at 100kHz
Parts Dimension	0.197" Dia
Height - Seated (Maximum)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1129700-6SVPC100MY
Manufacturer Homepage	www.panasonic.com/industrial/
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 6SVPC100MY CAD Model

Description

The Panasonic Electronic Components 1129700-6SVPC100MY is an electronic component manufactured by Panasonic Electronic Components.

Manufacturer: Panasonic Electronic Components
Type: Polymer Capacitor
Capacitance: 100μF
Voltage Rating: 6.3V
Ideal for: General Purpose Applications
Tolerance: ±20%
ESR: 25mOhm
Popularity: Medium
Supply and Demand: Balance
Ripple Current @ 120Hz: 133mA
Ripple Current @ 100kHz: 2.66A
