RCAP-BNCJ TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

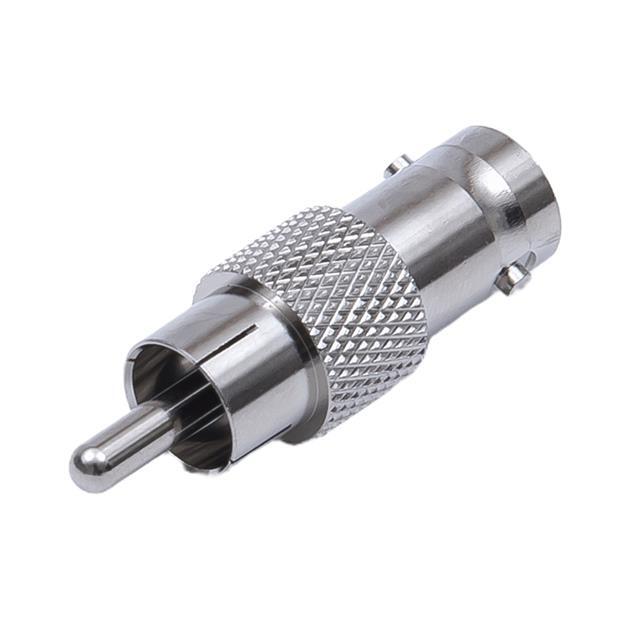

RCAP-BNCJ

Part No RCAP-BNCJ
Manufacturer TYCLON
Catalog Between Series Adapters
Description Adapter Connector BNC Jack, Female Socket To RCA Plug, Male Pin an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance Mismatch, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (RCA (50mΩ(Max.)),BNC (3mΩ(Max.)). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Nickel Plating, while the body is Brass/Nickel Plating.
Datasheet
RCAP-BNCJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Convert From (Adapter End) BNC Jack, Female Socket
Convert To (Adapter End) RCA Plug, Male Pin
Ultra Librarian 3D Model Ultra Librarian RCAP-BNCJ CAD Model
