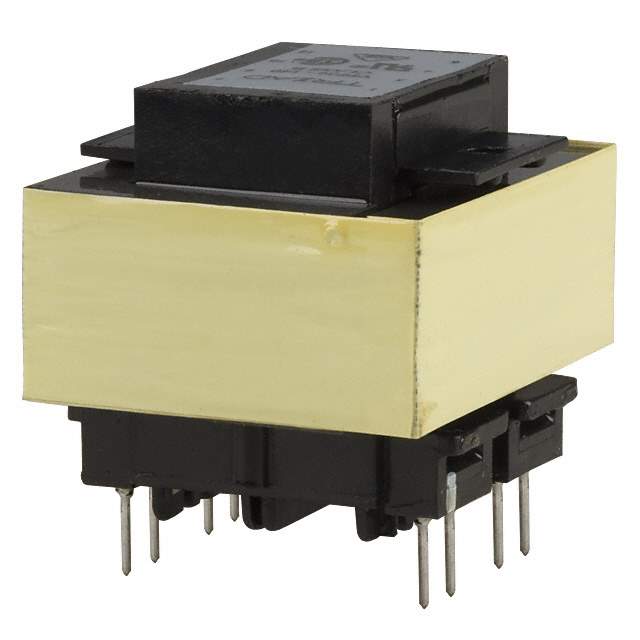

VPP12-400 Real Image
Same model may have multiple batches, images only for reference.

VPP12-400

Part No VPP12-400
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 5VA TH /
Datasheet
VPP12-400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Package Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 6.3V, Series 12.6V
Current - Output (Max) Parallel 800mA, Series 400mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 5VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 41.28mm L x 33.32mm W
Height - Seated (Max) 34.93mm
Voltage - Isolation 4000Vrms
Weight 0.37 lb (167.83 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names Q10151602,237-1082,237-1082-NDR,10495,VPP12400
Standard Package 1
Win Source Part Number 1104043-VPP12-400
Ultra Librarian 3D Model Ultra Librarian VPP12-400 CAD Model

Description

The Power Transformer 1104043-VPP12-400 is an electronic component that is used in various applications.

  • Power: 5VA
  • Voltage Isolation: 4000Vrms
  • Primary Winding Voltage: 115V and 230V
  • Secondary Winding Voltage: 6.3V in parallel and 12.6V in series
  • Mounting Type: through hole
  • Package: box
  • Availability: Win Source Part Number
