Same model may have multiple batches, images only for reference.

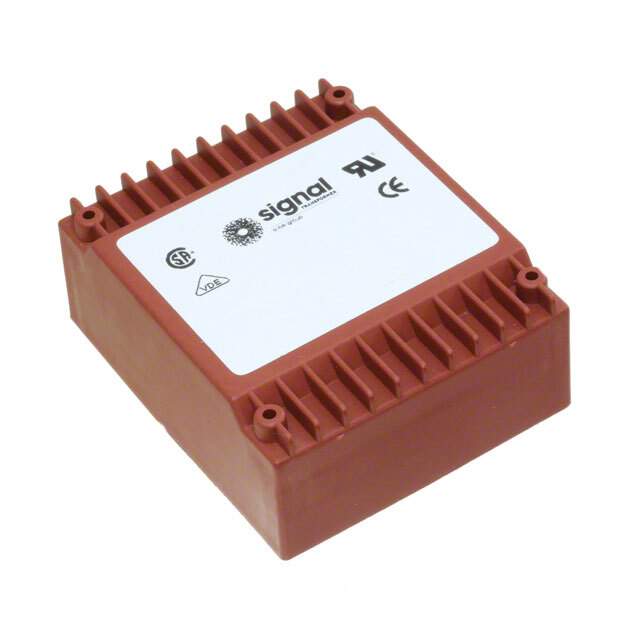

IF-30-34 Real Image
Same model may have multiple batches, images only for reference.

IF-30-34

Part No IF-30-34
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR SEMI-TORO 30VA TH /
Datasheet
IF-30-34 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Signal Transformer
Series IF
Package Bulk
Type Semi-Toroidal
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 17V, Series 34V
Current - Output (Max) Parallel 1.8A, Series 900mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 30VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 68.00mm L x 57.50mm W
Height - Seated (Max) 35.30mm
Voltage - Isolation 4000Vrms
Weight 1.3 lbs (589.7 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Standard Package 20
Win Source Part Number 977581-IF-30-34
Ultra Librarian 3D Model Ultra Librarian IF-30-34 CAD Model

Description

The Signal Transformer IF-30-34 is a semi-toroidal power transformer with a maximum power rating of 30VA.

  • Voltage Isolation: 4000Vrms
  • Weight: 1.3 lbs (589.7 g)
  • Primary Winding: dual
  • Secondary Winding: dual
  • Maximum Output Current (Parallel): 1.8A
  • Maximum Output Current (Series): 900mA
  • Voltage Rating (Primary): 115V or 230V
  • Voltage Rating (Secondary - Parallel): 17V
  • Voltage Rating (Secondary - Series): 34V
  • Mounting Type: through-hole
  • Dimensions: 68.00mm L x 57.50mm W
  • REACH: unaffected
  • ECCN: EAR99
