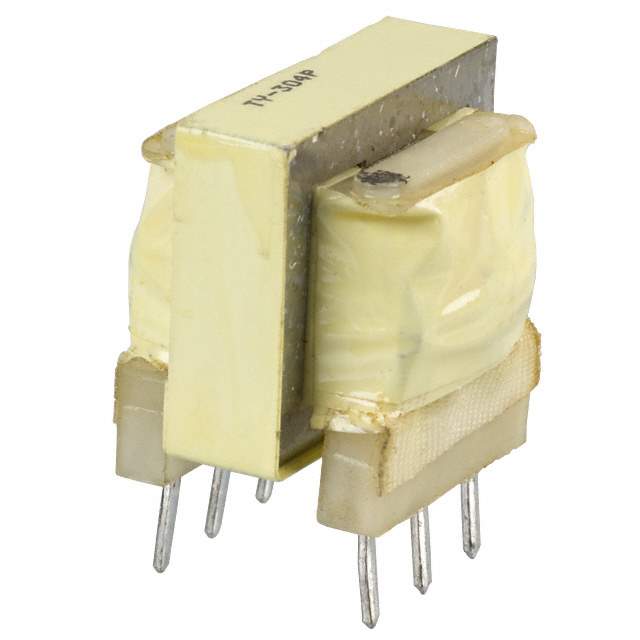

TY-304P Real Image
Same model may have multiple batches, images only for reference.

TY-304P

Part No TY-304P
Manufacturer Triad Magnetics
Catalog Audio Transformers
Description TRANSF 600 CT OHM 0MA DC TEL / 600CT Impedance Primary Ohms 600CT Impedance Secondary Ohms 1:1.05 Audio Transformer 300Hz ~ 3.5kHz Through Hole
Datasheet
TY-304P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Audio Transformers
Manufacturer Triad Magnetics
Packaging Bulk
Impedance - Primary (Ohms) 600CT
Impedance - Secondary (Ohms) 600CT
DC Resistance (DCR) - Primary 42Ohm
DC Resistance (DCR) - Secondary 60Ohm
Transformer Type Data/Voice Coupling
Frequency Range 300Hz ~ 3.5kHz
Frequency Response ±0.5dB
Voltage - Isolation 1500VAC
Insertion Loss 1dB Typ
Return Loss 26dB Typ
Power Level -45dB ~ 7dB
Temperature Range - Operating -20°C ~ 85°C
Mounting Through Hole
Size / Dimension 0.790" L x 0.812" W (20.07mm x 20.62mm)
Height - Seated (Max) 0.740" (18.80mm)
Termination Style PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Part Number 237-1127-NDR,237-1127,TY304P
Standard Package 1
Win Source Part Number 1329975-TY-304P
Ultra Librarian 3D Model Ultra Librarian TY-304P CAD Model

Description

The TY-304P is an audio transformer from Triad Magnetics.

  • Type: Data/Voice Coupling Transformer
  • Frequency Range: 300Hz to 3.5kHz
  • Insertion Loss: 1dB
  • Return Loss: 26dB
  • Size: 0.790" L x 0.812" W (20.07mm x 20.62mm)
  • Height: 0.740" (18.80mm)
  • Impedance (Primary/Secondary): 600CT
  • Voltage Isolation: 1500VAC
  • Mounting: Through-Hole
  • Termination Style: PC Pin
  • Operating Temperature: -20°C to 85°C
  • ROHS3: Compliant
  • ECCN: EAR99
