Same model may have multiple batches, images only for reference.

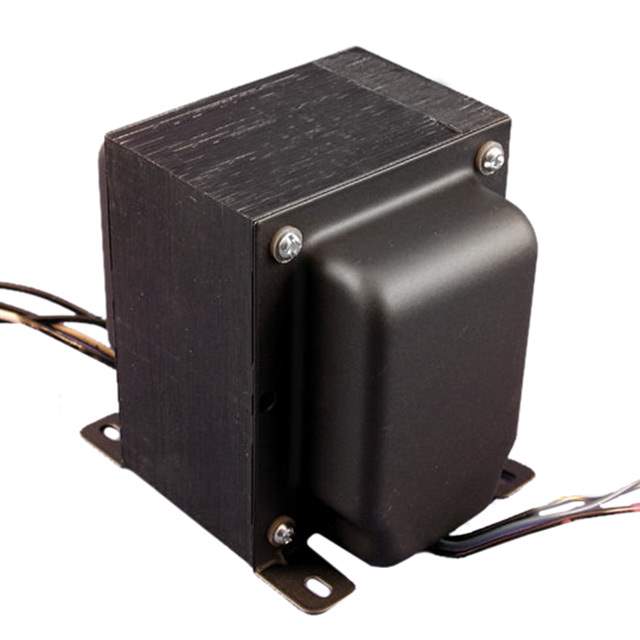

1629SEA Real Image
Same model may have multiple batches, images only for reference.

1629SEA

Part No 1629SEA
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description AUDIOPHILE TUBE OUTPUT TRANSFRMR  /  6.5k Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Chassis Mount
Datasheet
1629SEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Audio Transformers
Mfr Hammond Manufacturing
Series 1600
Package Box
Impedance - Primary (Ohms) 6.5k
Impedance - Secondary (Ohms) 4, 8, 16
Transformer Type Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range 20Hz ~ 20kHz
Frequency Response ±1dB
Voltage - Isolation 2000Vrms
Insertion Loss ±1dB
Power Level 30W
Mounting Type Chassis Mount
Dimension 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) 4.560" (115.82mm)
Termination Style Wire Leads
Weight 11 lbs (5 kg)
Base Product Number 1629
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names HM4223,1629SEA-ND
Standard Package 1
Win Source Part Number 1034906-1629SEA
Ultra Librarian 3D Model Ultra Librarian 1629SEA CAD Model

Description

The 1034906-1629SEA transformer is a single ended audiophile, ultra-linear tube output transformer.

  • Frequency Range: 20Hz to 20kHz
  • Insertion Loss: ±1dB
  • Mounting Type: Chassis Mounting
  • Voltage Isolation: 2000Vrms
  • Power Level: 30W
  • Weight: 11 lbs (5 kg)
  • Primary Impedance: 6.5k ohms
  • Secondary Impedance: 4, 8, 16 ohms
  • Dimension: 4.500" L x 3.750" W (114.30mm x 95.25mm)
