Same model may have multiple batches, images only for reference.

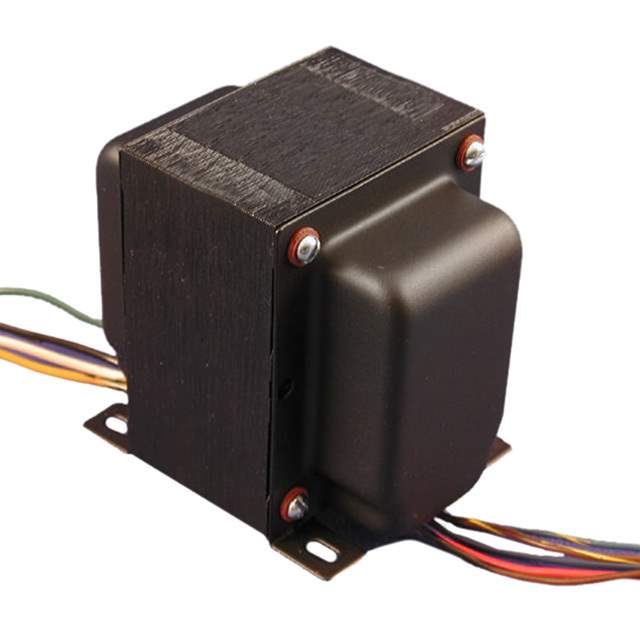

1650NA Real Image
Same model may have multiple batches, images only for reference.

1650NA

Part No 1650NA
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description AUDIOPHILE TUBE OUTPUT TRANSFRMR / 4.3kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 30Hz ~ 30kHz Chassis Mount
Datasheet
1650NA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Audio Transformers
Mfr Hammond Manufacturing
Series A
Package Box
Impedance - Primary (Ohms) 4.3kCT
Impedance - Secondary (Ohms) 4, 8, 16
DC Resistance (DCR) - Primary 37.19Ohm, 42.17Ohm
DC Resistance (DCR) - Secondary 244mOhm, 377mOhm, 490mOhm
Transformer Type Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range 30Hz ~ 30kHz
Frequency Response ±1dB
Voltage - Isolation 2000V @ 1 Second
Insertion Loss -
Return Loss -
Power Level 60W
Temperature Range - Operating -
Approval Agency -
Mounting Type Chassis Mount
Size / Dimension 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) 3.810" (96.77mm)
Termination Style Wire Leads
Weight 8 lbs (3.6 kg)
Base Product Number 1650N
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Standard Package 1 pcs
Win Source Part Number 1382243-1650NA
Ultra Librarian 3D Model Ultra Librarian 1650NA CAD Model

Description

The 1650NA is an audio transformer from the A series by Hammond Manufacturing.

  • Termination: Wire Leads
  • Package: Box
  • Size: 4.250" L x 3.130" W (107.95mm x 79.50mm)
  • Seated Height (Max): 3.810" (96.77mm)
  • Type: Push-Pull Audiophile, Ultra-Linear Tube Output
  • Frequency Range: 30Hz to 30kHz
  • Power Level: 60W
  • Standard Package: 1 pcs
