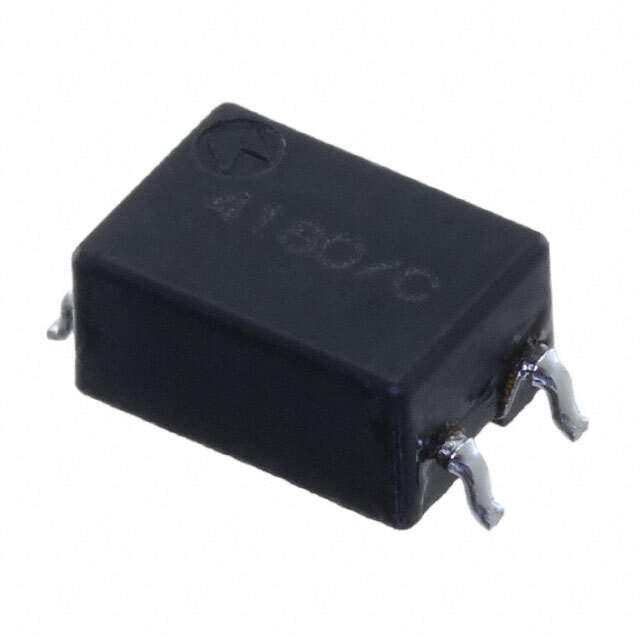

ESMIT-4180/C Real Image ESMIT-4180/C Real Image
Same model may have multiple batches, images only for reference.
ESMIT-4180/C Real Image ESMIT-4180/C Real Image
ESMIT-4180/C Real Image ESMIT-4180/C Real Image
Same model may have multiple batches, images only for reference.

ESMIT-4180/C

Part No ESMIT-4180/C
Manufacturer Sumida America Components Inc.
Catalog Audio Transformers
Description XFMR MODEM SMD  /  Impedance Primary Ohms Impedance Secondary Ohms Audio Transformer Surface Mount
Datasheet
ESMIT-4180/C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Audio Transformers
Mfr Sumida America Components Inc.
Series ESMIT
Package Tape & Reel
DC Resistance (DCR) - Primary 250mOhm
DC Resistance (DCR) - Secondary 250mOhm
Voltage - Isolation 3750Vrms
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.205" W (7.10mm x 5.20mm)
Height - Seated (Max) 0.138" (3.50mm)
Termination Style Gull Wing
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 308-2379-2,308-2379-1,308-2379-6
Standard Package 500
Win Source Part Number 1000979-ESMIT-4180/C
Ultra Librarian 3D Model Ultra Librarian ESMIT-4180/C CAD Model

Description

The Sumida America Components Inc. ESMIT-4180/C is an audio transformer used in various electronic devices.

  • Series: ESMIT
  • Termination Style: Gull Wing
  • Package: Tape and Reel
  • Height Seated: 0.138" (3.50mm)
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Voltage Isolation: 3750Vrms
  • Temperature Range: -40°C to 125°C
