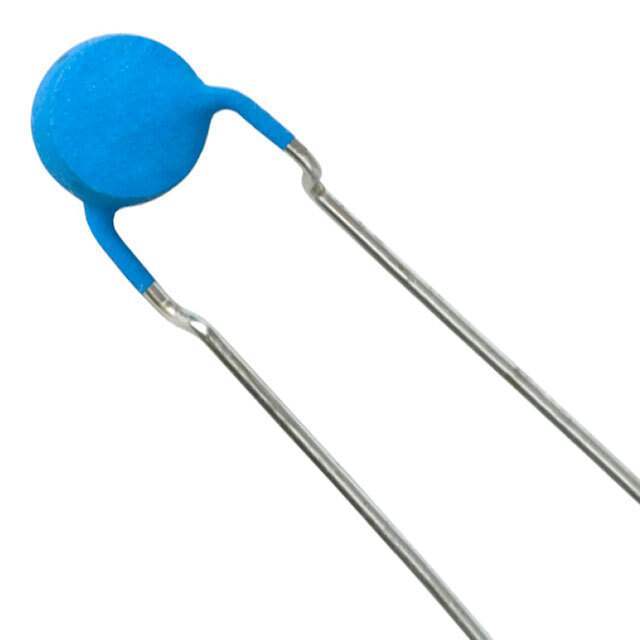

B59884C0120A054

Part No B59884C0120A054
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 265V 55MA RADIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Category Circuit Protection PTC Resettable Fuses
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Obsolete
Type Ceramic
Voltage - Max 420V
Current - Hold (Ih) (Max) 21 mA
Current - Trip (It) 39 mA
Current - Max 200 mA
Resistance - 25°C (Typ) 600 Ohms
Operating Temperature 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.256" Dia x 0.197" T (6.50mm x 5.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Ultra Librarian 3D Model Ultra Librarian B59884C0120A054 CAD Model

Description

Ceramic PTC Resettable Fuse 420V 21 mA Ih Through Hole Radial, Disc
