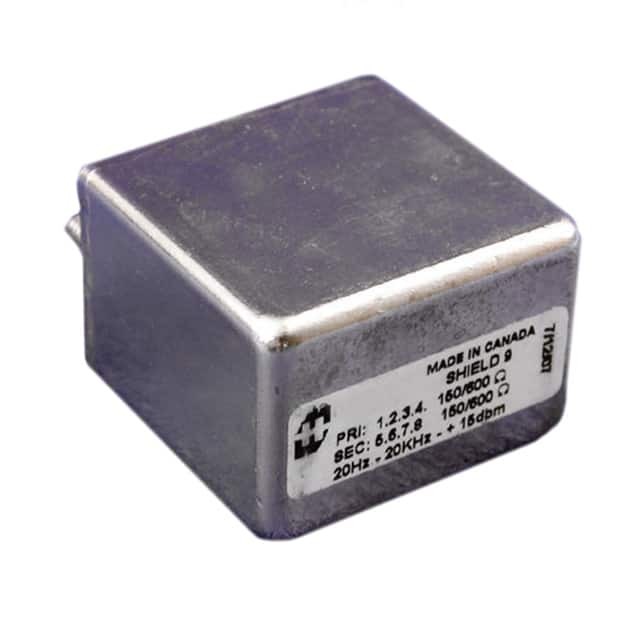

Same model may have multiple batches, images only for reference.
850Q
Same model may have multiple batches, images only for reference.

850Q

Part No 850Q
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description TRANSF AUDIO 10K/40K 10K/40K IMP / 40k, 10k/10k Impedance Primary Ohms 40k, 10k/10k Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Chassis Mount
Datasheet
850Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Audio Transformers
Mfr Hammond Manufacturing
Series 850
Package Bulk
Product Status Obsolete
Impedance - Primary (Ohms) 40k, 10k/10k
Impedance - Secondary (Ohms) 40k, 10k/10k
DC Resistance (DCR) - Primary 4.89kOhm
DC Resistance (DCR) - Secondary 4.98kOhm
Transformer Type Broadcast Quality
Frequency Range 20Hz ~ 20kHz
Insertion Loss 1dB
Power Level 15dB
Mounting Type Chassis Mount
Size / Dimension 1.700" L x 1.200" W (43.18mm x 30.48mm)
Height - Seated (Max) 1.650" (41.91mm)
Termination Style Solder Lug
Weight 0.4 lb (181.44 g)
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 858409-850Q
Ultra Librarian 3D Model Ultra Librarian 850Q CAD Model

Description

The 858409-850Q is an audio transformer designed for various audio applications.

  • Series: 850
  • Termination Style: Solder Lug
  • Packaging: Bulk
  • Quantity: 1 piece
  • Size: 1.700" L x 1.200" W (43.18mm x 30.48mm)
  • Quality: Broadcast
  • Height (Seated): 1.650" (41.91mm)
  • Standard Package: 1 piece
  • Frequency Range: 20Hz to 20kHz
