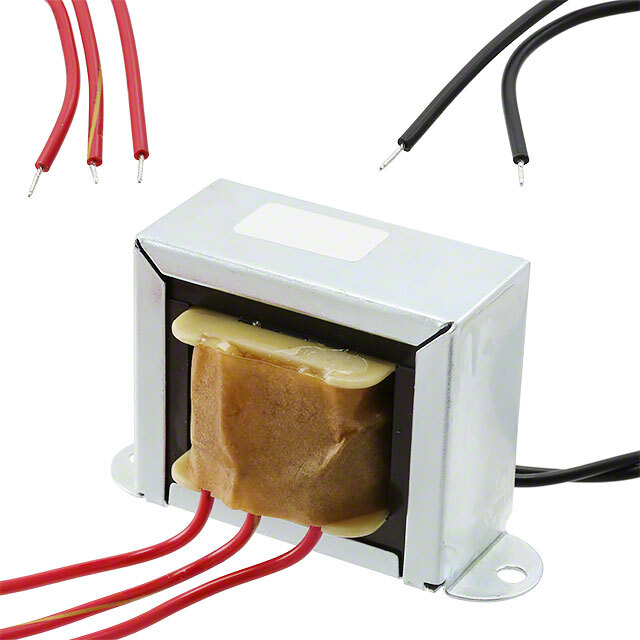

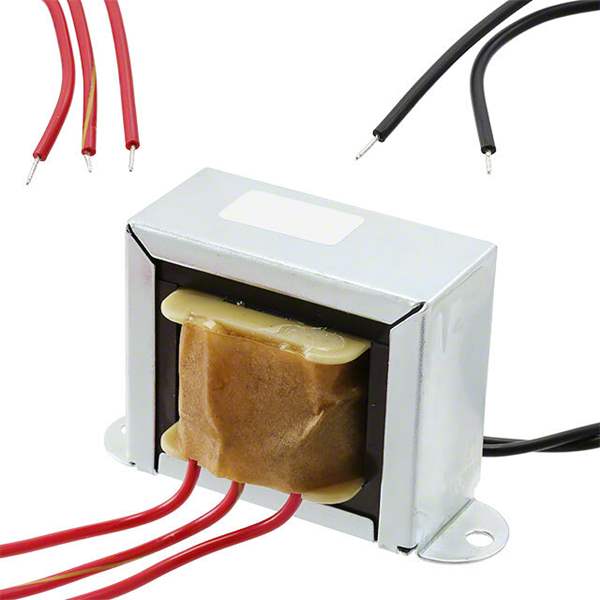

F-313X Triad Magnetics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

F-313X

Part No F-313X
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 3.8VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) 6.3V
Current - Output (Max) 600mA
Primary Winding(s) Dual
Secondary Winding(s) Single
Center Tap Yes
Power - Max 3.8VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 60.32mm L x 34.93mm W
Height - Seated (Max) 34.93mm
Voltage - Isolation 2500Vrms
Weight 0.37 lb (167.83 g)
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1546291-F-313X
Ultra Librarian 3D Model Ultra Librarian F-313X CAD Model
