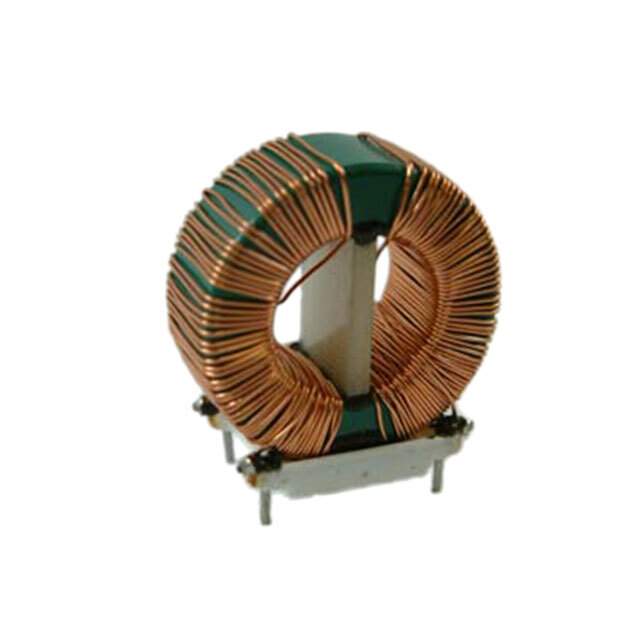

CMT-8117-B Real Image1 CMT-8117-B Real Image2
Same model may have multiple batches, images only for reference.
CMT-8117-B Real Image1 CMT-8117-B Real Image2
CMT-8117-B Real Image1 CMT-8117-B Real Image2
Same model may have multiple batches, images only for reference.

CMT-8117-B

Part No CMT-8117-B
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 36MH 2.9A 2LN TH ESD / 36 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 300mOhm
Datasheet
CMT-8117-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Triad Magnetics
Series CMT
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 36 mH @ 1 kHz
Current Rating (Max) 2.9A
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - AC 1500V (1.5kV)
Temperature Range - Operating -55°C ~ 105°C
Approval Agency CSA, IEC, UL, VDE
Features ESD
Mounting Type Through Hole
Dimension 1.550" L x 0.800" W (39.37mm x 20.32mm)
Height (Max) 1.650" (41.91mm)
Package / Case Vertical, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 90
Win Source Part Number 1188004-CMT-8117-B
Ultra Librarian 3D Model Ultra Librarian CMT-8117-B CAD Model

Description

The electronic component with Id 1034611 is a product manufactured by Triad Magnetics.

  • Win Source Part Number: 1188004-CMT-8117-B
  • Category: Filters>Common Mode Chokes
  • Series: CMT
  • Feature: ESD
  • Package: Bulk
  • Voltage Rating - AC: 1500V (1.5kV)
  • Current Rating (Max): 2.9A
  • Standard Package: 90
  • Filter Type: Power Line
  • Height (Max): 1.650" (41.91mm)
  • Number of Lines: 2
  • Inductance @ Frequency: 36 mH @ 1 kHz
  • DC Resistance (DCR) (Max): 300mOhm
  • Mounting Type: Through Hole
  • Package / Case: Vertical, 4 PC Pin
  • Temperature Range - Operating: -55°C ~ 105°C
  • Dimension: 1.550" L x 0.800" W (39.37mm x 20.32mm)
  • MSL Level: Not Applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8548.00.0000
  • Approvals: CSA, IEC, UL, VDE
