Same model may have multiple batches, images only for reference.

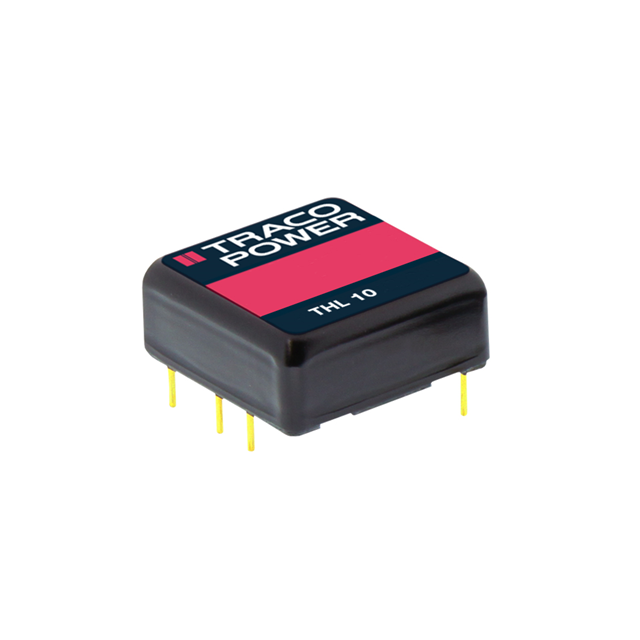

THL 10-4822 Real Image
Same model may have multiple batches, images only for reference.

THL 10-4822

Part No THL 10-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 36V - 75V Input
Datasheet
THL 10-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 416mA, 416mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 5-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number THL 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THL10-4822,THL 10-4822-ND,2266-THL 10-4822
Standard Package 10
Win Source Part Number 1335945-THL 10-4822
Ultra Librarian 3D Model Ultra Librarian THL 10-4822 CAD Model

Description

The Traco Power THL 10-4822 is a 10 W isolated module DC-DC converter with a size of 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm).

  • Application: ITE (Commercial)
  • Features: SCP
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 2
  • Maximum Current Output: 416mA each
  • Output 1 Voltage: 12V
  • Output 2 Voltage: -12V
  • Input Voltage Range: 36V to 75V
  • Efficiency: 87%
  • Operating Temperature: -40°C to 80°C (With Derating)
  • Package: 5-DIP module
  • ROHS3 Compliant: Yes
  • Category: Power supplies - board mount>DC DC Converters
