Same model may have multiple batches, images only for reference.

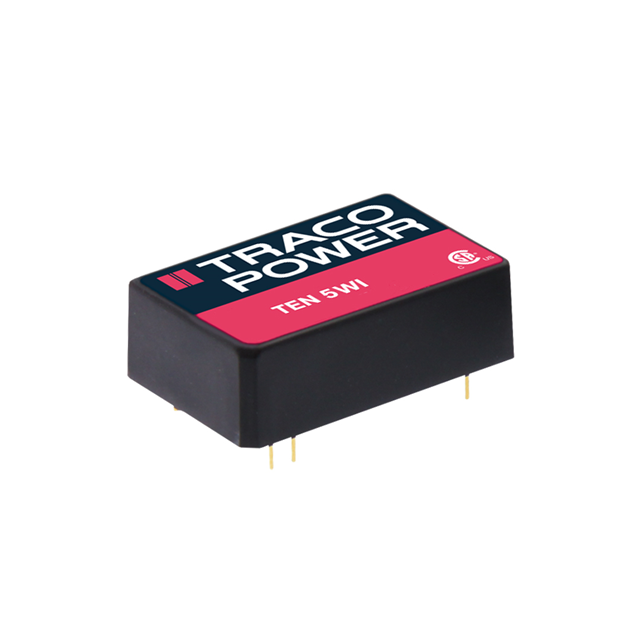

TEN 5-4822WI Real Image
Same model may have multiple batches, images only for reference.

TEN 5-4822WI

Part No TEN 5-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 75V Input
Datasheet
TEN 5-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 24-DIP Module, 7 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 5
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2203
Standard Package 10
Win Source Part Number 1335799-TEN 5-4822WI
Ultra Librarian 3D Model Ultra Librarian TEN 5-4822WI CAD Model

Description

The TEN 5-4822WI is a high-performance isolated module DC-DC converter from Traco Power.

  • Applications: ITE (Commercial)
  • Number of Outputs: 2
  • Current - Output (Max): 250mA each
  • Voltage - Input: 18V to 75V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Package / Case: 24-DIP Module, 7 Leads
  • Mounting Type: Through Hole
  • Power (Watts): 6W
  • Efficiency: 83%
  • Features: SCP (Short Circuit Protection)
  • Voltage - Isolation: 1.5 kV
