Same model may have multiple batches, images only for reference.

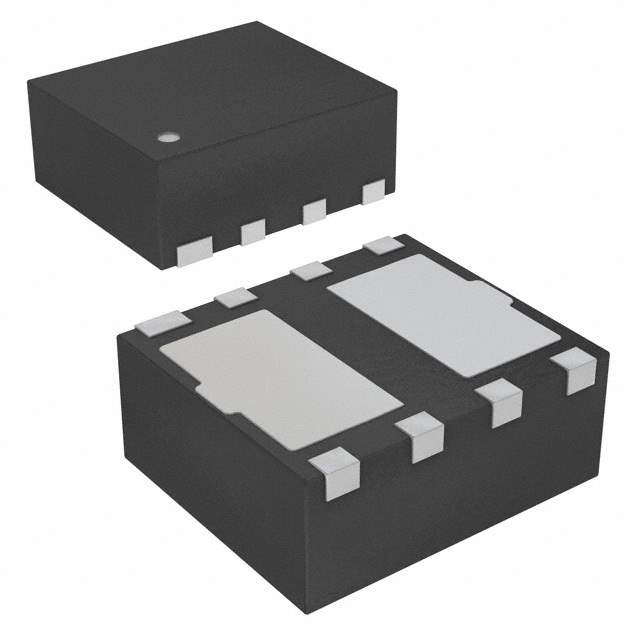

XCL209F083DR Real Image
Same model may have multiple batches, images only for reference.

XCL209F083DR

Part No XCL209F083DR
Manufacturer Torex Semiconductor Ltd
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.9-6V / Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 6V 400mA 1.8V - 6V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Torex Semiconductor Ltd
Series XCL209
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 1.8V
Voltage - Input (Max) 6V
Voltage - Output 1 0.9 ~ 6V
Current - Output (Max) 400mA
Applications ITE (Commercial)
Features SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting SMD (SMT)
Package / Case 10-SMD Module
Dimension 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Supplier Device Package USP-10B03
Base Product Number XCL209
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 893-1172-2,893-1172-1,893-1172-6,XCL209F083DR-G
Standard Package 3,000
Win Source Part Number 967443-XCL209F083DR
Ultra Librarian 3D Model Ultra Librarian XCL209F083DR CAD Model

Description

The Torex Semiconductor Ltd XCL209F083DR is a non-isolated PoL module that belongs to the XCL209 series.

  • Type: Non-Isolated PoL Module
  • Category: Power Supply Board Mount DC DC Converter
  • Current Output: Up to 400mA
  • Input Voltage: 1.8V to 6V
  • Output Voltage: 0.9V to 6V
  • Efficiency: 90%
  • Features: SCP and UVLO
  • Package: 10-SMD Module
  • Application: ITE (Commercial)
  • Supply and Demand Status: Balanced
  • Standard Package: 3,000 Units
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
