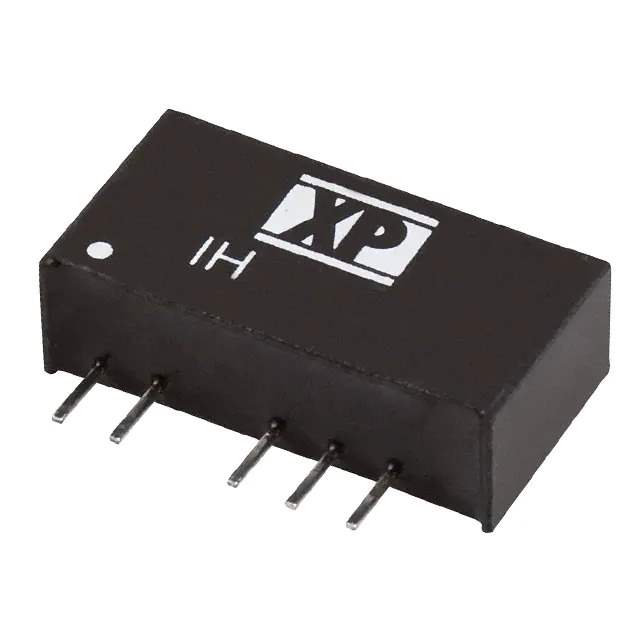

IH0505S Real Image
Same model may have multiple batches, images only for reference.

IH0505S

Part No IH0505S
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Datasheet
IH0505S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IH (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 72%
Mounting Type Through Hole
Package / Case 5-SIP Module
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm)
Base Product Number IH0505
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847932-IH0505S
Ultra Librarian 3D Model Ultra Librarian IH0505S CAD Model

Description

The IH (2W) is another isolated module power supply from XP Power.

  • Power: 2W
  • Package: Tube
  • Size: 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 20 pcs
  • Outputs: Two outputs
  • Maximum Output Current: 200mA each
  • Input Voltage: 4.5V to 5.5V
  • Output Voltages: 5V and -5V
  • Efficiency: 72%
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Base Product Number: IH0505
  • ECCN: EAR99
