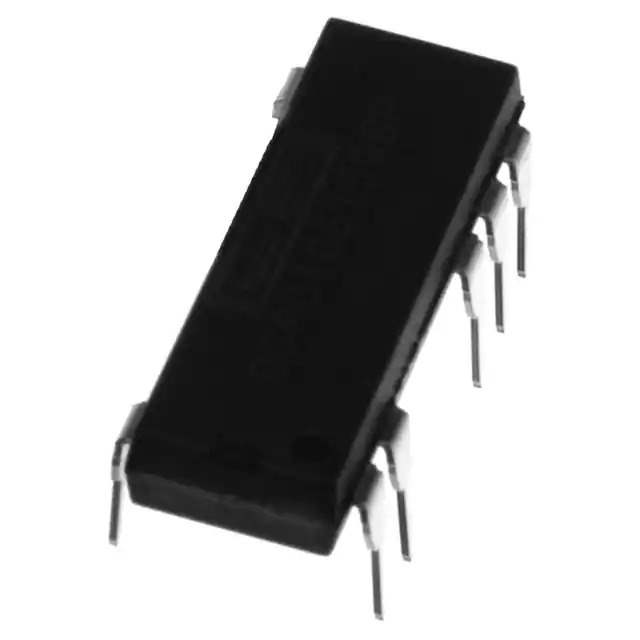

DCV010515DP - Isolated, Regulated DC-DC Converter

The DCV010515DP from Texas Instruments is a high-performance, isolated DC-DC converter module designed to offer a fixed and regulated output voltage with a wide input voltage range. This compact power module is an ideal solution for applications that require electrical isolation between input and output while maintaining a low power consumption and a small footprint.

Key Features:

• Input Voltage Range: The device can operate with an input voltage ranging from 4.5V to 5.5V, making it suitable for various applications that are powered from a 5V supply.
• Output Voltage: The DCV010515DP provides a regulated output voltage of 15V, which is essential for consistent performance in sensitive electronic circuits.
• Isolation: With 1000VDC minimum isolation, this module ensures that any electrical noise, spikes, or surges on the input side do not affect the output, thus providing excellent protection for sensitive loads.
• Power Rating: The device offers a power rating of 1W, which is adequate for powering small to medium-sized electronic devices.
• Efficiency: The DCV010515DP boasts a high efficiency, which reduces power loss during conversion and enhances the overall performance of the application.
• Package: It comes in a compact and robust 7-pin DIP package that is easy to integrate into a wide variety of electronic systems.
• Temperature Range: The device operates within an industrial temperature range of -40°C to 85°C, ensuring reliability across diverse operating conditions.

Applications:

The DCV010515DP is versatile and can be used in a multitude of applications, including but not limited to:

• Isolated sensor interfaces
• Industrial control systems
• Test and measurement equipment
• Data acquisition systems
• Medical equipment with stringent isolation requirements

With its combination of features, the DCV010515DP from Texas Instruments is an excellent choice for designers looking for a reliable and efficient isolated power solution. Its ease of use, combined with the support and reliability offered by Texas Instruments, makes it a valuable component in any power management system.
