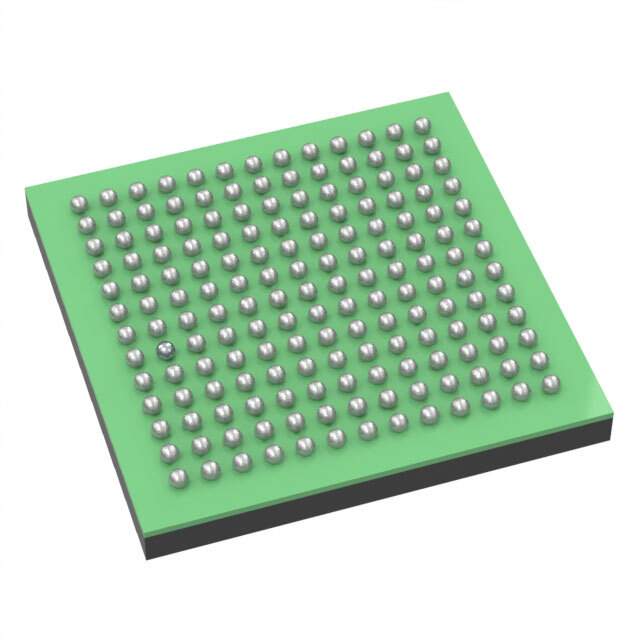

The XIO2001ZWS is a high-performance, single-function PCI Express to PCI translation bridge designed by Texas Instruments. It is engineered to enable users to connect legacy PCI devices to the newer, advanced PCI Express interface found in most modern computing systems. This product is part of Texas Instruments' extensive range of interface solutions that aim to provide seamless integration between various communication standards.

Key Features

• PCI Express Interface: The device features a single-lane (x1) PCI Express interface, which is compliant with the PCI Express 1.1 specification, ensuring broad compatibility and high data throughput.
• PCI Bus Compatibility: It supports a 32-bit, 33MHz PCI bus interface that is compliant with the PCI Local Bus Specification, revision 2.3, allowing for easy integration with legacy PCI systems.
• High Performance: With its innovative architecture, the XIO2001ZWS provides high performance and is optimized for low latency, making it ideal for applications requiring fast data transfer between PCI Express and PCI buses.
• Advanced Power Management: The device includes support for advanced power management features, including the ability to transition to lower power states when the connected PCI or PCI Express devices are not active, reducing overall power consumption.

Applications

The versatility of the XIO2001ZWS allows it to be used in a wide range of applications, including industrial automation, data acquisition, embedded systems, and servers that require the use of PCI-based add-on cards. Its ability to bridge between the two standards makes it an invaluable tool for system upgrades and maintenance, ensuring compatibility and extending the life of existing PCI devices.

Technical Specifications

• PCI Express Base Specification, Revision 1.1
• PCI Local Bus Specification, Revision 2.3
• Support for 1-lane 2.5 Gbps PCI Express
• 32-bit, 33 MHz PCI interface support
• Low-profile, small form factor design

With the XIO2001ZWS, Texas Instruments continues to demonstrate its commitment to providing innovative solutions that bridge the gap between legacy interfaces and modern technology, ensuring that customers can leverage their existing investments while still benefiting from the advancements in computing and data transfer technologies.
